Product Details:
|
| Part Number: | NTMFS4C028NT1G | FET Type: | N-Channel |
|---|---|---|---|
| Technology: | MOSFET (Metal Oxide) | Drain To Source Voltage (Vdss): | 30 V |
| Vgs (Max): | ±20V | Mounting Type: | Surface Mount |

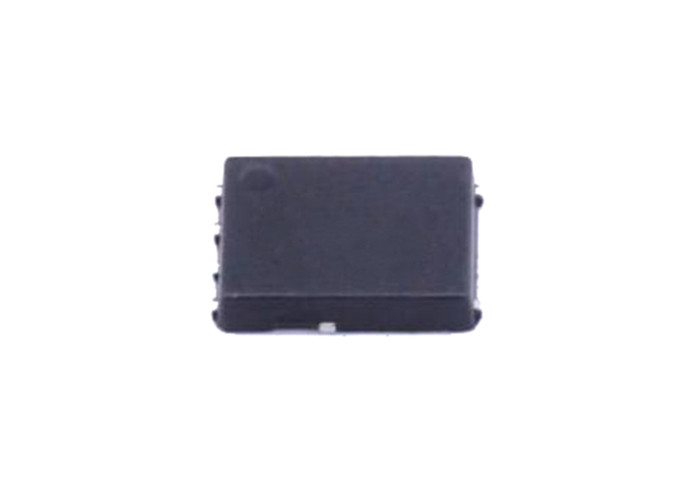

Integrated Circuit Chip NTMFS4C028NT1G 30V N-Channel MOSFET Transistors DFN-5
Product Description
NTMFS4C028NT1G is N-Channel MOSFET Transistors, Surface−mounted on FR4 board using the minimum recommended pad size. Surface−mounted on FR4 board using 1 sq−in pad, 1 oz Cu.
Specification Of NTMFS4C028NT1G
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
16.4A (Ta), 52A (Tc)
|
|
Drive Voltage (Max Rds On, Min Rds On)
|
4.5V, 10V
|
|
Rds On (Max) @ Id, Vgs
|
4.73mOhm @ 30A, 10V
|
|
Vgs(th) (Max) @ Id
|
2.1V @ 250µA
|
|
Gate Charge (Qg) (Max) @ Vgs
|
22.2 nC @ 10 V
|
|
Vgs (Max)
|
±20V
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1252 pF @ 15 V
|
|
Power Dissipation (Max)
|
2.51W (Ta), 25.5W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
5-DFN (5x6) (8-SOFL)
|
|
Package / Case
|
8-PowerTDFN, 5 Leads
|
Features
Applications
