RoHS Compliant RTL8153B-VB-CG Ethernet Controller Chip Integrated RTL8153B QFN40

Integrated Circuit Chip RTL8153B-VB-CG Ethernet Controller Chip RTL8153B QFN40

Product Description

RTL8153B-VB-CG 10/100/1000M Ethernet controller combines a triple-speed IEEE 802.3 compatible Media Access Controller (MAC) with a triple-speed Ethernet transceiver, USB 3.0 bus controller, and embedded memory. With state-of-the-art DSP technology and mixed-mode signal technology.
RTL8153B-VB-CG offers high-speed transmission over CAT 5 UTP cable or CAT 3 UTP (10Mbps only) cable. Functions such as Crossover Detection and Auto-Correction, polarity correction, adaptive equalization, cross-talk cancellation, echo cancellation, timing recovery, and error correction are implemented to provide robust transmission and reception capabilities.

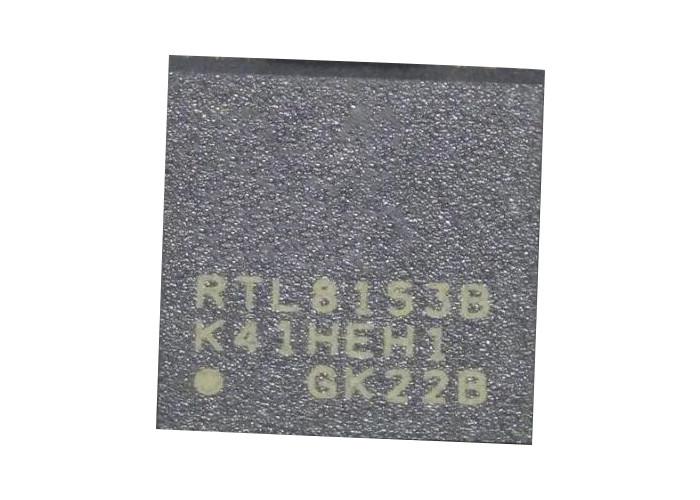

Product Photo

Features

• Embedded OTP memory can replace external EEPROM
• Built-in switching regulator and LDO regulator
• Supports Customizable LEDs
• Supports hardware CRC (Cyclic Redundancy Check) function
• LAN disable with GPIO pin
• Supports USB 3.0, 2.0, and 1.1
• Supports CDC-ECM
• Supports 25MHz Crystal
• Supports 25MHz/48MHz Oscillator
• Supports ECMA-393 ProxZzzy Standard for sleeping hosts
• Supports power down/link down power saving

Applications

• USB 10/100/1000M Ethernet on Motherboard, Dongle, Notebook, Docking station, or Embedded system

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
