Product Details:
|
| Part Number: | NTMFS4C05NT1G | Drive Voltage (Max Rds On, Min Rds On): | 4.5V, 10V |
|---|---|---|---|
| Rds On (Max) @ Id, Vgs: | 3.4mOhm @ 30A, 10V | Vgs(th) (Max) @ Id: | 2.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 14 NC @ 4.5 V | Operating Temperature: | -55°C ~ 150°C (TJ) |
| Highlight: | MOS TUSB1002ARGER Integrated Circuit Chip,N Channel TUSB1002ARGER Integrated Circuit Chip,14 NC NTMFS4C05NT1G DFN5 |
||

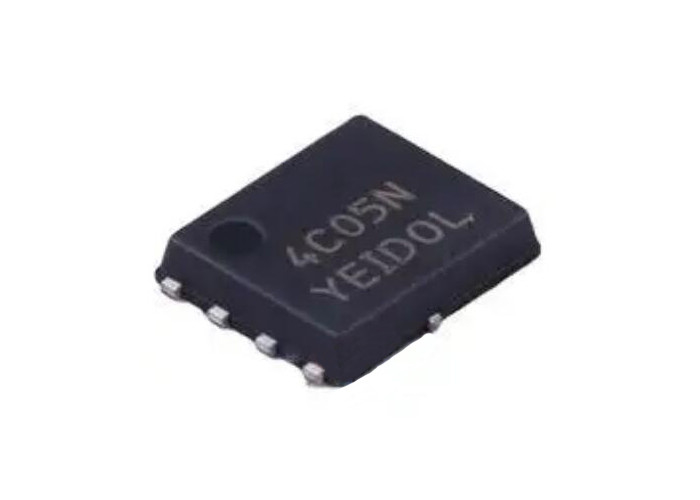

MOSFET Transistors NTMFS4C05NT1G MOS Single Transistors NTMFS4C05 DFN5
Product Description
NTMFS4C05NT1G is Surface Mount N-Channel Transistors. The maximum gate charge at different Vgs is 14 nC @ 4.5 V, Current at 25°C - 11.9A continuous drain (Ta).
Specification Of NTMFS4C05NT1G
|
FET Type
|
N-Channel
|
|
Technology
|
MOSFET (Metal Oxide)
|
|
Drain to Source Voltage (Vdss)
|
30 V
|
|
Current - Continuous Drain (Id) @ 25°C
|
11.9A (Ta)
|
|
Input Capacitance (Ciss) (Max) @ Vds
|
1972 pF @ 15 V
|
|
Power Dissipation (Max)
|
770mW (Ta), 33W (Tc)
|
|
Operating Temperature
|
-55°C ~ 150°C (TJ)
|
|
Mounting Type
|
Surface Mount
|
|
Supplier Device Package
|
5-DFN (5x6) (8-SOFL)
|
|
Package / Case
|
8-PowerTDFN, 5 Leads
|
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
