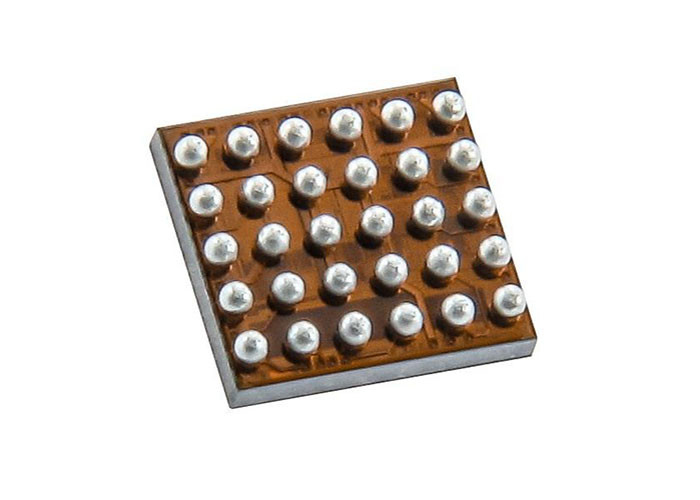

MAX77654BENV+T Integrated Circuit Chip 30WLP PMIC Power Management General Purpose

Integrated Circuit Chip MAX77654BENV+T General Purpose PMIC Power Management 30-WLP

General Description

The MAX77654BENV+T provides highly-integrated battery charging and power supply solutions for low-power applications where size and efficiency are critical. The IC features a SIMO buck-boost regulator that provides three independently programmable power rails from a single inductor to minimize total solution size. Two 100mA LDOs provide ripple rejection for audio and other noise-sensitive applications. The LDOs can also be configured as load switches to manage power consumption by disconnecting external blocks when not required. A highly-configurable linear charger supports a wide range of Li+ battery capacities and includes battery temperature monitoring for additional safety (JEITA).

This device includes three GPIOs and an analog multiplexer that switches several internal voltage and current signals to an external node for monitoring with an external ADC. A bidirectional I2C serial interface allows for configuring and checking the status of the devices. An internal on/off controller provides a controlled startup sequence for the regulators and provides supervisory functionality while they are on. Numerous factory programmable options allow the device to be tailored for many applications, enabling faster time to market.

Benefits and Features

3x Output, Single-Inductor Multiple-Output (SIMO) Buck-Boost Regulator
Supports Wide Output Voltage Range from 0.8V to 5.5V for all SIMO Channels
2x 100mA LDO/LSW
Smart Power Selector™ Li+/Li-Poly Charger
3x GPIO Resources
Analog MUX Output for Power Monitoring
Factory Ship Mode (< 200nA IQ)
0.3μA Shutdown Current
6μA Operating Current (3 SIMO Channels + 2LDOs)
Charger Optimized for Small Battery Size
Programmable Fast-Charge Current from 7.5mA to 300mA
Programmable Battery Regulation Voltage from 3.6V to 4.6V
Programmable Termination Current from 0.375mA to 45mA
JEITA Battery Temperature Monitors Adjust Charge Current and Battery Regulation Voltage for Safe Charging
Flexible and Configurable
I2C-Compatible Interface and GPIO

Applications

Bluetooth Headphones, Hearables
Wireless Speakers
Fitness, Health, and Activity Monitors
Wearables
Safety and Security Monitors
Sensor Nodes
Portable Consumer Devices
Internet of Things (IoT)

Simplified Block Diagram
