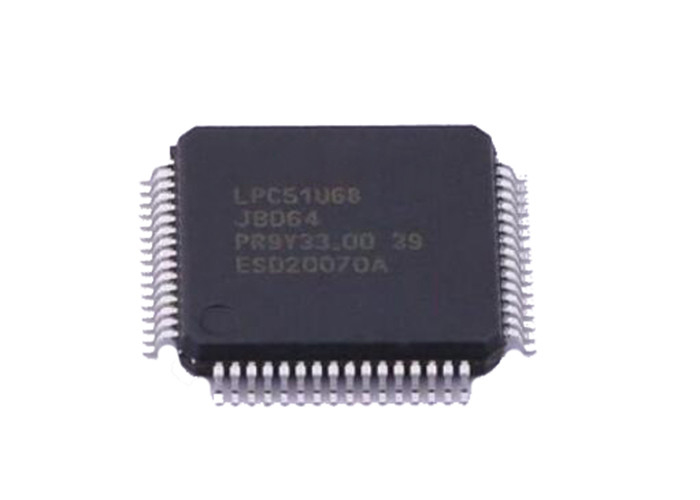

Integrated LPC51U68JBD64 Embedded ARM Cortex Chips LPC51U68 LQFP64

Integrated Circuit Chip LPC51U68JBD64 ARM Microcontrollers IC LPC51U68 LQFP64

Product Description

LPC51U68JBD64 is ARM Cortex-M0+ based microcontrollers for embedded applications. These devices include 96 KB of on-chip SRAM, 256 KB on-chip flash, full-speed USB device interface, an I2S, three general-purpose timers, one versatile timer with PWM and many other capabilities (SCTimer/PWM), one RTC/alarm timer, one 24-bit Multi-Rate Timer (MRT), a Windowed Watchdog Timer (WWDT), eight flexible serial communication peripherals (each of which can be a USART, SPIs, or I2C interface), one 12-bit 5.0 Msamples/sec ADC, and a temperature sensor.

Specification Of LPC51U68JBD64

Features

• ARM Cortex-M0+ processor, running at a frequency of up to 150 MHz.
• Single cycle multiplier.
• ARM Cortex-M0+ built-in Nested Vectored Interrupt Controller (NVIC).
• Non-maskable Interrupt (NMI) with a selection of sources.
• Serial Wire Debug (SWD) with 4 breakpoints and 2 watchpoints.
• System tick timer.
• On-Chip memory:
• 256 KB on-chip flash programming memory with flash accelerator and 256 Byte page write and erase.
• Up to 96 KB total SRAM composed of up to 64 KB main SRAM, plus an additional 32 KB SRAM.
• ROM API support:
• Flash In-Application Programming (IAP) and In-System Programming (ISP).
• ROM-based USB drivers (HID, CDC, MSC, DFU). Flash updates via USB.
• Booting from valid user code in flash, USART, SPI, and I2C.
• Legacy, Single, and Dual image boot.

Package Outline
