256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8

256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8
256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8

Large Image :  256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: MX25L25673GM2I-08G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 8-SOP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8

Description
Part Number: MX25L25673GM2I-08G Memory Type: Non-Volatile
Memory Size: 256Mb (32M X 8) Clock Frequencies: Up To 133MHz
Latch-up Protected: 100mA Low Vcc Write Inhibit Range: 1.5V To 2.5V
Highlight:

256Mb Bits Memory IC

,

MX25L25673GM2I-08G NOR Flash Memory

,

peripheral interface MX25L25673GM2I-08G

Memory IC MX25L25673GM2I-08G 256Mb Bits Serial NOR Flash Memory MX25L25673 SOP8



Product Description

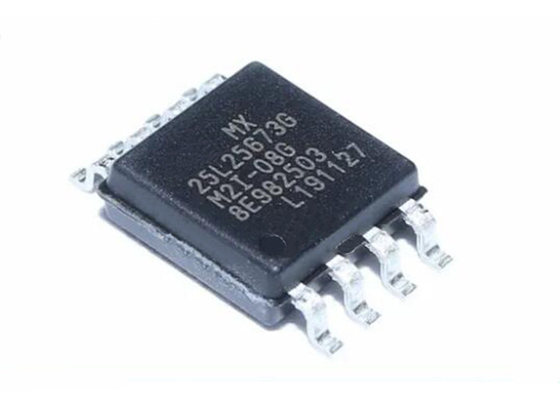

MX25L25673GM2I-08G is 256Mb bits Serial NOR Flash memory, which is configured as 33,554,432 x 8 internally. When it is in two or four I/O mode, the structure becomes 34,217,728 bits x 2 or 67,108,864 bits x 4.
MX25L25673GM2I-08G features a serial peripheral interface and software protocol allowing operation on a simple 3-wire bus while it is in single I/O mode. The three bus signals are a clock input (SCLK), a serial data input (SI), and a serial data output (SO). Serial access to the device is enabled by CS# input.


Specification Of MX25L25673GM2I-08G

Memory Type
Non-Volatile
Memory Format
FLASH
Technology
FLASH - NOR
Memory Size
256Mb (32M x 8)
Memory Interface
SPI
Clock Frequency
120 MHz
Write Cycle Time - Word, Page
30µs, 750µs
Voltage - Supply
2.7V ~ 3.6V
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
8-SOIC (0.209", 5.30mm Width)
Supplier Device Package
8-SOP



256Mb Bits Memory IC MX25L25673GM2I-08G NOR Flash Memory Peripheral Interface SOP8 0


Features

  • Protocol Support: Single I/O, Dual I/O and Quad I/O
  • Latch-up protected to 100mA from -1V to Vcc +1V
  • Low Vcc write inhibit is from 1.5V to 2.5V
  • Fast read for SPI mode
  • Supports clock frequencies up to 133MHz for all protocols
  • Supports Fast Read, 2READ, DREAD, 4READ, QREAD instructions
  • Supports DTR (Double Transfer Rate) Mode
  • Configurable dummy cycle number for fast read operation
  • Default Quad I/O enable (QE bit=1), and can not be changed


FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
