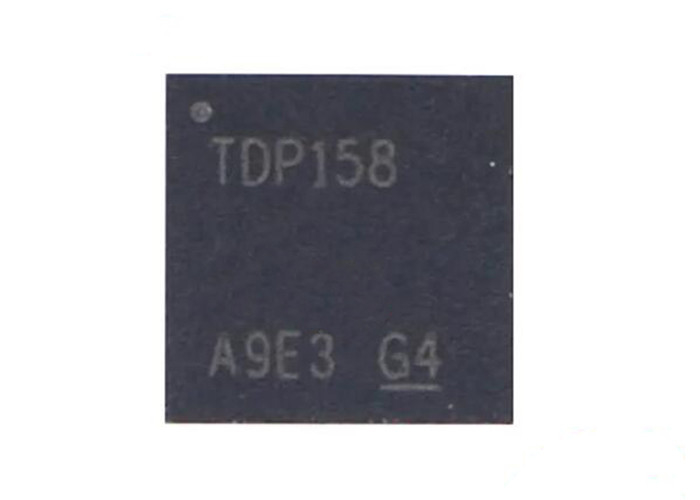

TDP158 Integrated Circuit Chip 15.5dB TDP158RSBR Display Interface IC

Integrated Circuit Chip TDP158RSBR Display Interface IC TDP158 Level Shifter Redriver

Product Description

TDP158RSBR is an AC-coupled HDMI signal to transition-minimized differential signal (TMDS) Redriver supporting digital video interface (DVI) 1.0 and high-definition multimedia interface (HDMI) 1.4b and 2.0b output signals. TDP158RSBR supports four TMDS channels and Digital Display Control (DDC) interfaces. TDP158RSBR supports signaling rates up to 6 Gbps to allow for the highest resolutions of 4k2k60p 24 bits per pixel and up to WUXGA 16-bit color depth or 1080p with higher refresh rates. TDP158RSBR can be configured to support the HDMI 2.0 standard.

Specification Of TDP158RSBR

Features

• Supporting DisplayPort dual-mode standard version 1.1
• Support 4k2k60p and up to WUXGA 16-bit color depth or 1080p with higher refresh rates
• Programmable fixed receiver equalizer up to 15.5 dB
• Global or independent high speed lane control, pre-emphasis and transmit swing, and slew rate control
• I2C or pin strap programmable
• Configurable as a DisplayPort redriver through the I2C
• Full lane swap on main lanes
• Low power consumption
• 200 mW active at 6-Gbps and –8 mW at shutdown state

Applications

• Notebook, desktop, all-in-ones, tablet, gaming and industrial PC
• Audio or video equipment
• Blu-ray™ DVD
• Gaming systems
• HDMI adaptor or dongle
• Docking station

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
