Product Details:
|
| Part Number: | ADE7913ARIZ | Number Of Channels: | 3 Channel |
|---|---|---|---|
| Operating Supply Voltage: | 3.3 V | Pd - Power Dissipation: | 2.78 W |
| Reference Voltage: | 1.2 V | SNR - Signal To Noise Ratio: | 74 DB |
| Highlight: | Polyphase Energy Metering IC SOIC20,Energy Metering IC SOIC20 ADE7913ARIZ,ADE7913ARIZ Solar Inverters |
||

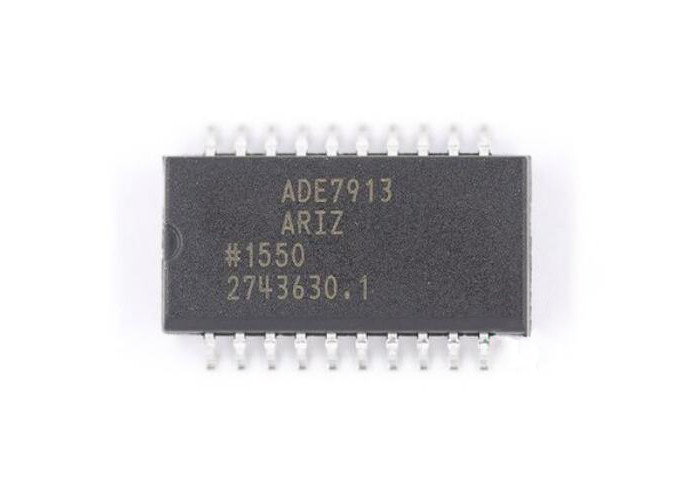

Energy Metering IC ADE7913ARIZ Polyphase Energy Metering ADE7913 SOIC20
Product Description
ADE7913ARIZ is isolated, 3-channel Σ-Δ ADCs for polyphase energy metering applications using shunt current sensors. ADE7913ARIZ features three ADCs. The current ADC provides a 67 dB signal-to-noise ratio (SNR) over a 3 kHz signal bandwidth, whereas the voltage ADCs provide an SNR of 72 dB over the same bandwidth. One channel is dedicated to measuring the voltag across a shunt when the shunt is used for current sensing.
Specification Of ADE7913ARIZ
|
Type
|
ADC, Energy Measurement
|
|
Number of Channels
|
3
|
|
Resolution (Bits)
|
24 b
|
|
Data Interface
|
SPI
|
|
Voltage Supply Source
|
Single Supply
|
|
Voltage - Supply
|
3.3V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
20-SOIC (0.295", 7.50mm Width)
|
|
Supplier Device Package
|
20-SOIC-IC
|
Functional Block Diagram
Features
Applications
