4.5V Switching Regulator Integrated Circuit Chip TPS568230RJER Synchronous Buck Converter

Switching Regulator TPS568230RJER TPS568230 4.5V to 18V 8A Synchronous Buck Converter

Product Description

TPS568230RJER is a cost effective, high voltage input, high efficiency synchronous buck converter with an integrated MOSFET.
TPS568230RJER features ULQ™ (ultra-low quiescent current) for low bias current. The device uses DCAP3™ control mode to provide fast transient response, good line and load regulation without external compensation, and supports low equivalent series resistance (ESR) output capacitors such as dedicated polymer and ultra-low ESR ceramic capacitors.
TPS568230RJER is available in a 20-pin 3.0mm x 3.0mm HotRod™ package and is rated for a junction temperature range of -40°C to 125°C.

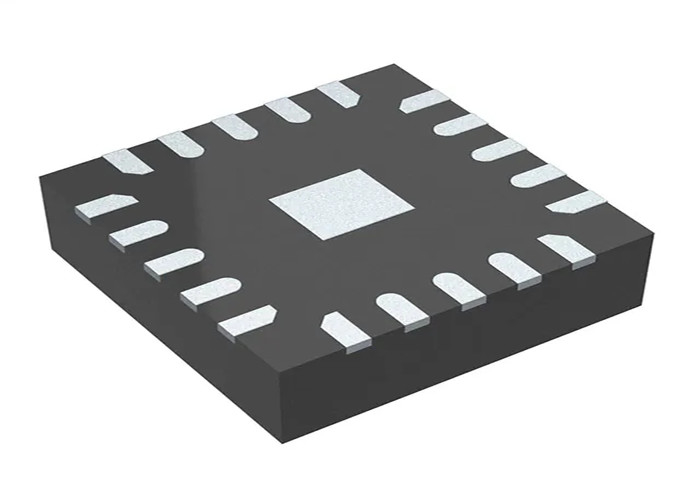

20-pin (RJE) package

Features

• Input voltage range: 4.5V to 18V
• D-CAP3™ architecture control for fast transient response
• Output voltage range: 0.6V to 7V
• 0.6V ±1% reference voltage (25°C)
• Supports 8A continuous output current
• Integrated 19.5mΩ and 9.5mΩ RDS(on) internal power MOSFETs
• ULQ™ (ultra-low quiescent current) feature for long battery life
• Selectable switching frequencies of 600kHz, 800kHz and 1MHz
• Supports up to 90% load operation
• Adjustable soft-start time (adjustable via SS pin)
• Power supply normal state output
• Built-in output discharge function
• Cycle-by-cycle overcurrent protection
• Non-latching protection available for fault protection
• Small 3.0mm × 3.0mm HotRod™ QFN package

Applications

• Digital TV, set-top box, gaming consoles
• Server, storage and networking point-of-load
• Industrial PC and factory automation applications
• Distributed power systems with typical 5-V, 12-V,15-V input
