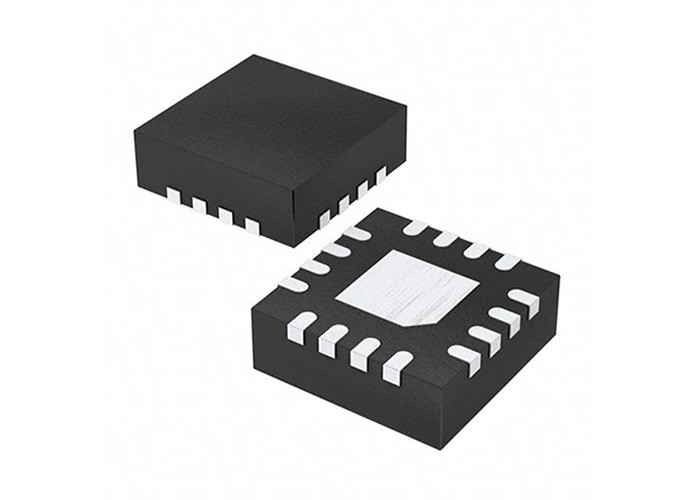

VR12 Power Management Integrated Circuits IR35207MTRPBF Multiphase Controller

Power Management IC IR35207MTRPBF dual output digital multi-phase controller

Product Description

The IR35207MTRPBF is a dual loop, digital, multi-phase buck controller designed for CPU and DDR voltage regulation,and is fully compliant with Intel® VR13, VR12.5, VR12 & IMVP8.
The IR35207MTRPBF can be configured to enter 1 or 2-phase operation and active diode emulation mode automatically or by command.
The IR35207MTRPBF offers digitally programmable load line thereby eliminating the need for any external load line setting component. The controller is designed to work with integrated and DCR current sense power stages and provides accurate input and output current reporting.

Features

Low quiescent power dual output PWM controller supporting 3+1 configuration
VR13 rev 1.1 , VR12.5 rev1.5, VR12 rev 1.7, IMVP8 rev 1.2 and memory VR modes
Switching frequency from 200 kHz to 2 MHz per phase
Infineon efficiency shaping features including dynamic phase control and automatic power state switching
Programmable 1 or 2-phase operation for light loads and active diode emulation for very light loads
Digitally programmable load line - no external components are needed to set the load line
Auto-phase detection with PID coefficient auto-scaling
Fault protection: OVP, UVP, OCP, OTP, CFP, cycle-by-cycle current limit
I2C/SMBus/PMBus system interface for reporting of temperature, voltage, current and power telemetry for both loops
Multiple Time Programming (MTP) with up to 27 writes for the USER section
Compatible with industry standard 3.3 V tri-state drivers
+3.3 V supply voltage; -40°C to 85°C ambient operation
Pb-Free, RoHS, 5x5 mm 40-pin, 0.4 mm pitch QFN

Potential applications
VR13, VR12.5, VR12 and IMVP8 based systems
Servers and high end desktop CPU VRs
Memory VR
