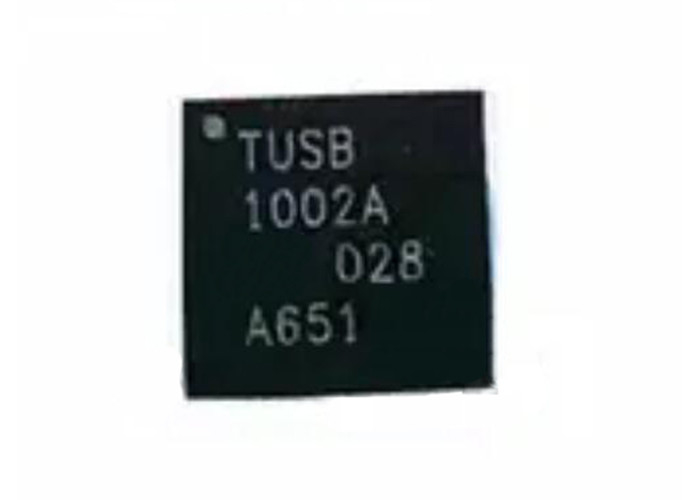

USB3.2 10Gbps Integrated Chips TUSB1002ARGER Dual Channel Linear Redriver QFN24

IC Chip TUSB1002ARGER USB3.2 10Gbps Dual Channel Linear Redriver TUSB1002 QFN24

Product Description

TUSB1002ARGER is the industry’s first dual-channel USB 3.2 x1 SuperSpeedPlus (SSP) redriver and signal conditioner. The device offers low power consumption on a 3.3-V supply with its ultra-lowpower architecture. It supports the USB3.2 low power modes which further reduces idle power consumption.

Specification Of TUSB1002ARGER

Simplified Schematic

Features

• Supports USB3.2 x1 SuperSpeed (5 Gbps) and
• SuperSpeedPlus (10 Gbps)
• Supports PCI Express Gen3, SATA Express, and SATA Gen3.
• Ultra Low-Power Architecture
• Active: < 300 mW
• Disconnect/U2/U3: < 1.9 mW
• Shutdown: < 700 µW
• Adjustable Voltage Output Swing Linear Range up to 1200 mVpp
• No Host/Device Side Requirement
• 16 Settings for up to 16 dB at 10 Gbps of Linear Equalization
• Adjustable DC Equalization Gain
• Hot-Plug Capable

Applications

• Notebook and Desktop PC
• TVs
• Tablets
• Cell Phones
• Active Cable
• Docking Stations

Functional Block Diagram

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
