Closedloop Integrated Circuit Chip TAS5805MPWPR Class D Amplifier TAS5805 HTSSOP28

Integrated Circuit Chip TAS5805MPWPR Closedloop Class D Amplifier TAS5805 HTSSOP28

Product Description

TAS5805MPWPR is a high-efficiency, stereo, closedloop Class-D amplifier offering a cost-effective digitalinput solution with low power dissipation and sound enrichment. The device’s integrated audio processor and 96 kHz architecture support advanced audio process flow, including SRC, 15 BQs per channel, volume control, audio mixing, 3-band 4th order DRC, full-band AGL, THD manager and level meter.

Specification Of TAS5805MPWPR

Simplified Block Diagram

Features

• Supports Multiple Output Configurations
• 2 × 23 W in 2.0 Mode (8-Ω, 21 V, THD+N=1%)
• 45 W in Mono Mode (4-Ω, 21 V, THD+N=1%)
• Low Quiescent Current with Hybrid Modulation
• 16.5 mA at PVDD = 13.5 V , 22 µH + 0.68 µF Filter
• Supports 32, 44.1, 48, 88.2, 96 kHz Sample Rates
• SDOUT for Audio Monitoring, Sub-Channel or Echo Cancellation
• Thermal Foldback, DC Blocking
• Input Mixer, Output Crossbar
• Inductor-less Operation (Ferrite Bead) for most cases where PVDD ≤ 14V

Applications

• LCD TV, OLED TV
• Wireless Speaker, Smart Speaker with Voice Assistant
• Soundbar, Wired Speaker , Bookshelf Stereo System
• Desktop PC, Notebook PC
• AV Receiver, Smart Home and IoT Appliance

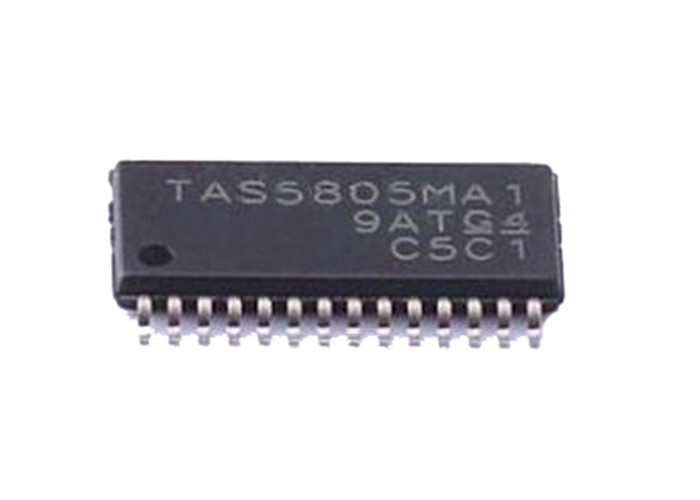

Product Photo

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
