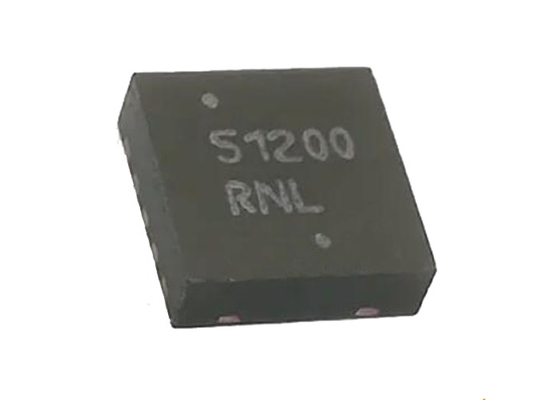

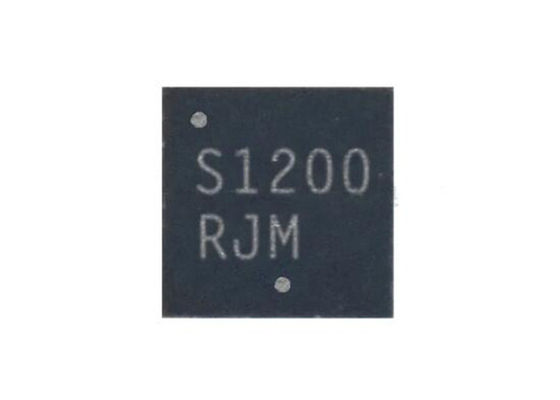

NCP51200 Voltage Regulator IC NCP51200MNTXG Ic Chips Data Rate Termination Regulator

Voltage Regulator IC NCP51200MNTXG Data Rate Termination Regulator NCP51200​

Product Description

NCP51200MNTXG is a source/sink Double Data Rate (DDR) termination regulator specifically designed for low input voltage and low−noise systems where space is a key consideration.
NCP51200MNTXG maintains a fast transient response and only requires a minimum output capacitance of 20 F. NCP51200MNTXG supports a remote sensing function and all power requirements for DDR VTT bus termination.
NCP51200MNTXG can also be used in low−power chipsets and graphics processor cores that require dynamically adjustable output voltages.

Specification Of NCP51200MNTXG

Features

• For Automotive Applications
• Input Voltage Rails: Supports 2.5 V, 3.3 V and 5 V Rails
• PVCC Voltage Range: 1.1 to 3.5 V
• Integrated Power MOSFETs
• Fast Load−Transient Response
• PGOOD − Logic output pin to Monitor VTT Regulation
• EN − Logic input pin for Shutdown mode
• Remote Sensing (VTTS)
• Built−in Soft Start, Under Voltage Lockout and Over Current Limit
• Thermal Shutdown
• Small, Low−Profile 10−pin, 3x3 DFN Package

Applications

• DDR Memory Termination
• Desktop PC’s, Notebooks, and Workstations
• Servers and Networking equipment
• Telecom/Datacom, GSM Base Station
• Graphics Processor Core Supplies
• Set Top Boxes, LCD−TV/PDP−TV, Copier/Printers
• Chipset/RAM Supplies as Low as 0.5 V
• Active Bus Termination

Application Schematic

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
