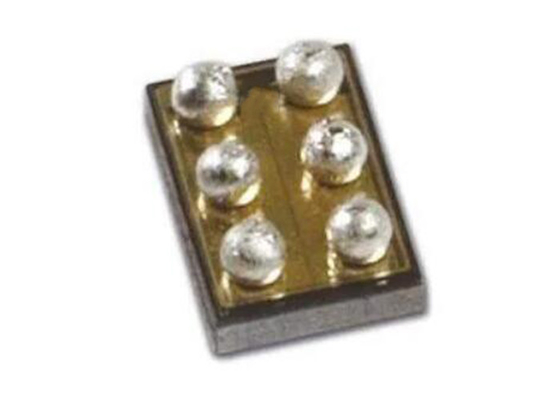

Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6

Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6
Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6

Large Image :  Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: NCP451FCT2G
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 6-WLCSP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6

Description
Part Number: NCP451FCT2G Type: Load Switch
Number Of Outputs: 1 Output Output Current: 3 A
On Resistance - Max: 35 MOhms On Time - Max: 1.4 Ps

Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6



Product Description

NCP451FCT2G is a very low Ron MOSFET controlled by external logic pin, allowing optimization of battery life, and portable device autonomy. Indeed, due to a current consumption optimization with NMOS structure, leakage currents are eliminated by isolating connected IC on the battery when not used. Output discharge path is also embedded to eliminate residual voltages on the output rail.


Specification Of NCP451FCT2G

Switch Type
General Purpose
Number of Outputs
1
Ratio - Input:Output
1:1
Output Configuration
High Side
Output Type
N-Channel
Interface
On/Off
Voltage - Load
0.75V ~ 5.5V
Voltage - Supply (Vcc/Vdd)
Not Required
Current - Output (Max)
3A
Rds On (Typ)
12mOhm
Input Type
Non-Inverting
Features
Load Discharge, Slew Rate Controlled
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Supplier Device Package
6-WLCSP (1.4x0.9)
Package / Case
6-UFBGA, WLCSP



Power Switch IC NCP451FCT2G 3A Low Ron Load Drivers Chip NCP451 WLCSP6 0



Features

  • 0.75 V – 5.5 V Operating Range
  • 12 m N MOSFET from 3.6 V to 5.5 V
  • 13 m N MOSFET from 1 V to 3.3 V
  • DC Current Up to 3 A
  • Output Auto−Discharge
  • Active High EN Pin
  • WLCSP6 0.9 x 1.4 mm



Applications

  • Mobile Phones
  • Tablets
  • Digital Cameras
  • GPS
  • Portable Devices
