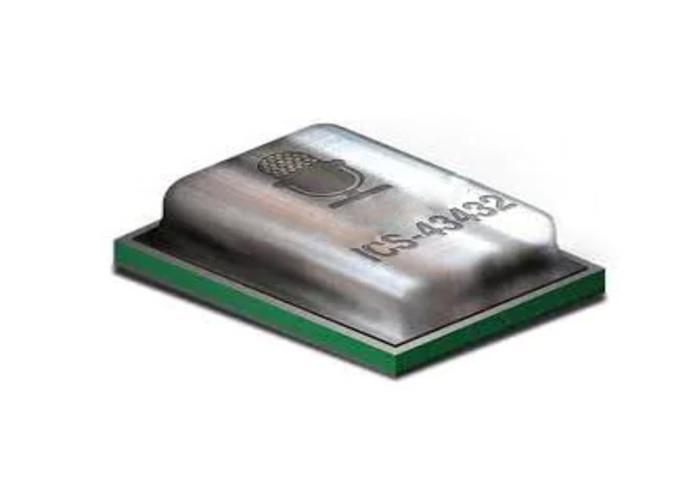

Audio sensors ICS-43432 50 Hz to 20 kHz Digital MEMS Microphone

Audio sensors ICS-43432 50 Hz to 20 kHz Digital MEMS Microphone

Description

ICS-43432 is a digital I²S output bottom port microphone. The complete ICS-43432 solution consists of a MEMS sensor, signal conditioning, an analog-to-digital converter, decimation and anti-aliasing filters, power management, and an industry standard 24-bit I²S interface. The I²S interface allows the to connect directly to digital processors, such as DSPs and microcontrollers, without the need for an audio codec in the system.
ICS-43432 has a high SNR of 65 dBA and a wideband frequency response. The sensitivity tolerance of the is ±1 dB, which enables high-performance microphone arrays without the need for system calibration.

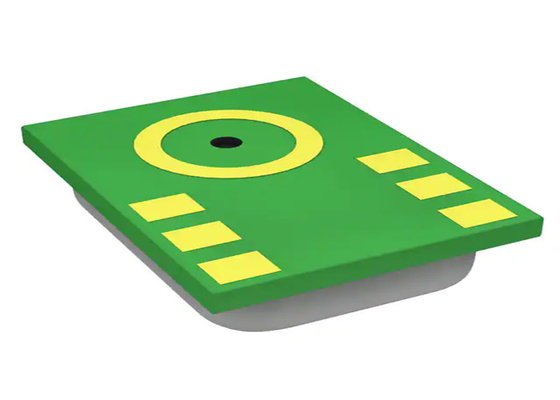

ICS-43432 is available in a small 4 mm × 3 mm × 1 mm surface-mount package.

Specification Of ICS-43432

Features

• Digital I²S Interface with High Precision 24-bit Data
• High 65 dBA SNR
• −26 dB FS Sensitivity
• ±1 dB Sensitivity Tolerance
• Wide Frequency Response from 50 Hz to 20 kHz
• Low Current Consumption: 1.0 mA
• High Power Supply Rejection: −80 dB FS
• 116 dB SPL Acoustic Overload Point
• Small 4 mm × 3 mm × 1 mm Surface-Mount Package
• Compatible with Sn/Pb and Pb-Free Solder Processes
• RoHS/WEEE Compliant

Applications

• Wearables
• Smart Televisions
• Remote Controls
• Teleconferencing Systems
• Gaming Consoles
• Security Systems
• Microphone Arrays

Functional Block Diagram

Pin Configurations

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
