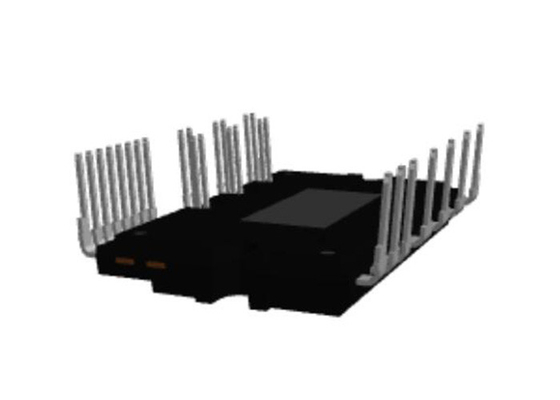

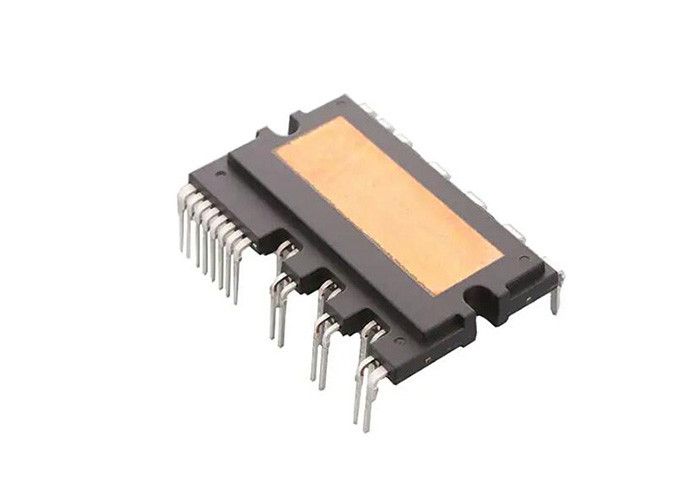

NFVA35065L32 Automotive IGBT Modules NFVA35065 650V 50A Smart Power Module

3 Phase Inverter NFVA35065L32 Automotive Smart Power Module NFVA35065 650V 50A

Product Description Of NFVA35065L32

NFVA35065L32 is an advanced Automotive SPM® module providing a fully−featured, high−performance inverter output stage for hybrid and electric vehicles.
NFVA35065L32 integrate optimized gate drive of the built−in IGBTs to minimize EMI and losses, while also providing multiple on−module protection features including under−voltage lockouts, over−current shutdown, thermal monitoring of drive IC, and fault reporting. The built−in, high−speed HVIC requires only a single supply voltage and translates the incoming logic−level gate inputs to the high−voltage, high−current drive signals required to properly drive the module’s internal IGBTs. Separate negative IGBT terminals are available for each phase to support the widest variety of control algorithms.

Specification Of NFVA35065L32

Features Of NFVA35065L32

• Automotive SPM in 27 Pin DIP Package
• AEC & AQG324 Qualified and PPAP Capable
• 650 V/50 A 3−Phase IGBT Inverter with Integral Gate Drivers and Protections
• 175°C Guaranteed Short−Circuit Rated FS Trench IGBTs with Low Vce(sat) and Fast Switching
• Outstanding Thermal Resistance Using AlN DBC Substrate
• Separated Open−Emitter Pins from Low−Side IGBTs for Three−Phase Current Sensing
• Single−Grounded Power Supply
• LVIC Temperature−Sensing Built−In for Temperature Monitoring
• Isolation Rating: 2500 Vrms/1 min.

Applications Of NFVA35065L32

• Automotive High Voltage Auxiliary Motors
• Climate e−Compressors
• Oil/Water Pumps
• Super/Turbo Chargers
• Variety Fans

Pin Configuration Of NFVA35065L32

Example Circuit For Switching Test Of NFVA35065L32

NFVA35065L32 - Mounting Screws Torque Order
