Product Details:
|
| Part Number: | LMZ12001TZ-ADJ/NOPB | Number Of Outputs: | 1 |
|---|---|---|---|
| Voltage - Input (Min): | 4.5V | Voltage - Input (Max): | 20V |
| Voltage - Output 1: | 0.8 ~ 6V | Current - Output (Max): | 1A |
| Highlight: | PoL Module DC DC Converter,DC DC Converter TO-PMOD-7 |
||

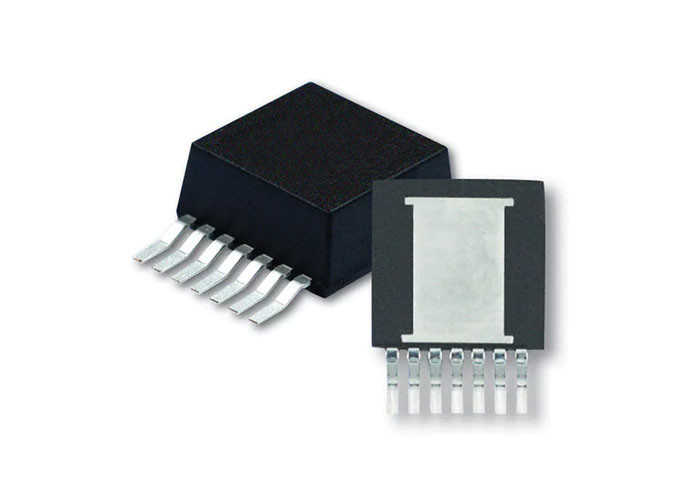

LMZ12001TZ-ADJ/NOPB Non-Isolated PoL Module DC DC Converter TO-PMOD-7
Product Description of LMZ12001TZ-ADJ/NOPB
The LMZ12001TZ-ADJ/NOPB power module is an easy-to-use step-down DC-DC solution capable of driving up to 1A load with exceptional power conversion efficiency, line and load regulation, and output accuracy. The LMZ12001TZ-ADJ/NOPB is available in an innovative package that enhances thermal performance and allows for hand or machine soldering.
Product Attributes of LMZ12001TZ-ADJ/NOPB
|
Product Status |
Active |
|
Type |
Non-Isolated PoL Module |
|
Number of Outputs |
1 |
|
Voltage - Input (Min) |
4.5V |
|
Voltage - Input (Max) |
20V |
|
Voltage - Output 1 |
0.8 ~ 6V |
|
Current - Output (Max) |
1A |
|
Applications |
ITE (Commercial) |
|
Features |
UVLO |
|
Operating Temperature |
-40°C ~ 125°C |
|
Efficiency |
92% |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-PMOD-7, Power Module |
|
Size / Dimension |
0.40" L x 0.39" W x 0.18" H (10.2mm x 9.9mm x 4.6mm) |
|
Supplier Device Package |
TO-PMOD-7 |
|
Control Features |
Enable, Active High |
Features of LMZ12001TZ-ADJ/NOPB
Integrated Shielded Inductor
Simple PCB Layout
Flexible Start-up Sequencing Using E xteral Soft-start Capacitor and Precision Enable
Protection Against Inrush Currents and Faults Such as Input UVLO and Output Short Circuit
Junction Temperature Range - 40°C to 125°C
Single Exposed Pad and Standard Pinout for Easy Mounting and Manufacturing
Fast Transient Response for FPGAs
Low Output Voltage Ripple
Applications of LMZ12001TZ-ADJ/NOPB
Simplified Application Schematic LMZ12001TZ-ADJ/NOPB
