Product Details:
|
| Part Number: | TPS7B8733QDDARQ1 | Output Voltage: | 3.3 V |
|---|---|---|---|
| Output Current: | 500 MA | Number Of Outputs: | 1 Output |
| Quiescent Current: | 35 UA | Dropout Voltage: | 360 MV |

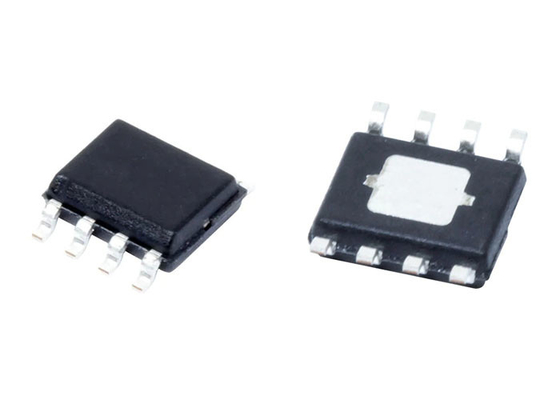

TPS7B8733QDDARQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 500mA
Product Description of TPS7B8733QDDARQ1
The TPS7B8733QDDARQ1 is a low-dropout linear regulator designed to connect to the battery in automotive applications. The device has an input voltage range extending to 40 V, which allows the device to withstand transients (such as load dumps) that are anticipated in automotive systems. With only a 17µA quiescent current at light loads, the device is an optimal solution for powering always-on components such as microcontrollers (MCUs) and controller area network (CAN) transceivers in standby systems.
Specification Of TPS7B8733QDDARQ1
|
Product Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
40V |
|
Voltage - Output (Min/Fixed) |
3.3V |
|
Voltage Dropout (Max) |
0.535V @ 500mA |
|
Current - Output |
500mA |
|
Current - Quiescent (Iq) |
26 µA |
|
PSRR |
70dB (1kHz) |
|
Control Features |
Power Good |
|
Protection Features |
Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
|
Operating Temperature |
-40°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-PowerSOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SO PowerPad |
Applications of TPS7B8733QDDARQ1
Reconfigurable instrument clusters
Body control modules (BCM)
Always-on battery-connected applications:
Automotive gateways
Remote keyless entries (RKE)
Pin Configuration and Functions of TPS7B8733QDDARQ1
Output Equal to Reference Voltage of TPS7B8733QDDARQ1
