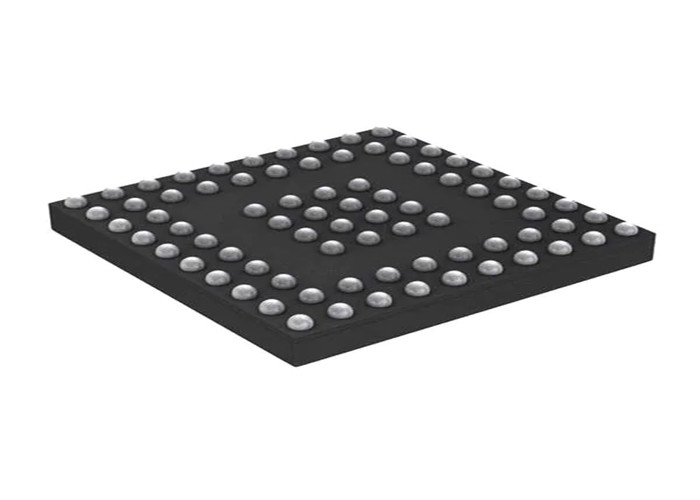

IC FPGA 37 I/O 80CKFBGA LIF-MDF6000-6KMG80I Field Programmable Gate Array

IC FPGA 37 I/O 80CKFBGA LIF-MDF6000-6KMG80I Field Programmable Gate Array

Product Description Of LIF-MDF6000-6KMG80I

LIF-MDF6000-6KMG80I CrossLinkPlus™ is a programmable video bridging device that supports a variety of protocols and interfaces for mobile image sensors and displays. The device is based on Lattice mobile FPGA 40-nm technology with embedded flash. It is a low power FPGA with small footprint and instant boot up time (< 10 ms).

LIF-MDF6000-6KMG80I CrossLinkPlus supports video interfaces including MIPI® DPI, MIPI DBI, CMOS camera, and display interfaces, OpenLDI, FPD-Link, FLATLINK, MIPI D-PHY, MIPI CSI-2, MIPI DSI, SLVS200, subLVDS, HiSPi, and more.

LIF-MDF6000-6KMG80I provides many pre-engineered Intellectual Property (IP) modules for CrossLinkPlus. By using these configurable soft core IPs as standardized blocks, you are free to concentrate on the unique aspects of your design, increasing the productivity.

Specification Of LIF-MDF6000-6KMG80I

Features Of LIF-MDF6000-6KMG80I

• On-chip reprogrammable flash memory for instant boot (<10ms)
• Hardened, pre-validated MIPI D-PHY interface supporting speeds of up to 6Gbps per port
• Extensive support for high-speed I/O interfaces such as LVDS, SLV and subLVDS
• Comprehensive IP library, including MIPI CSI-2, MIPI DSI, OpenLDI transmitters and receivers
• Compatible with other Lattice FPGAs for easy design portability
• Full compatibility with Diamond design software tool flow from synthesis and design capture through implementation, verification and programming
• Power consumption as low as 300µW (standby) or 5mW (operating)
