Product Details:
|
| Part Number: | LP5912Q3.3DRVRQ1 | Output Voltage: | 3.3 V |
|---|---|---|---|
| Output Current: | 500 MA | Quiescent Current: | 400 UA |
| Input Voltage, Min: | 1.6 V | Input Voltage, Max: | 6.5 V |

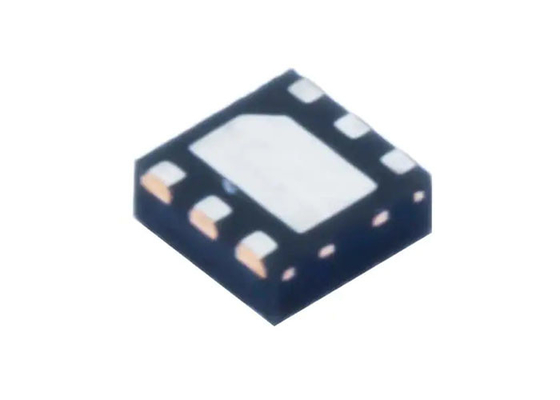

LP5912Q3.3DRVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 500mA 6-WSON
Description of LP5912Q3.3DRVRQ1
The LP5912Q3.3DRVRQ1 is low-noise LDO that can supply up to 500 mA of output current. Designed to meet the requirements of RF and analog circuits, the LP5912Q3.3DRVRQ1 device provides low noise, high PSRR, low quiescent current, and low line and load transient response. The LP5912Q3.3DRVRQ1 offers class-leading noise performance without a noise bypass capacitor and with the ability for remote output capacitance placement.
Product Attributes of LP5912Q3.3DRVRQ1
|
Product Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
6.5V |
|
Voltage - Output (Min/Fixed) |
3.3V |
|
Voltage Dropout (Max) |
0.18V @ 500mA |
|
Current - Output |
500mA |
|
Current - Quiescent (Iq) |
55 µA |
|
Current - Supply (Max) |
600 µA |
|
PSRR |
80dB ~ 40db (100Hz ~ 100kHz) |
|
Control Features |
Enable, Power Good, Soft Start |
|
Protection Features |
Over Temperature, Reverse Polarity, Short Circuit |
|
Operating Temperature |
-40°C ~ 125°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
6-WDFN Exposed Pad |
|
Supplier Device Package |
6-WSON (2x2) |
Features of LP5912Q3.3DRVRQ1
Input Voltage Range: 1.6 V to 6.5 V
Output Voltage Range: 0.8 V to 5.5 V
Output Current up to 500 mA
Low Output-Voltage Noise: 12 µVRMS Typical
PSRR at 1 kHz: 75 dB Typical
Output Voltage Tolerance (VOUT ≥ 3.3 V): ±2%
Low IQ (Enabled, No Load): 30 µA Typical
Low Dropout (VOUT ≥ 3.3 V): 95 mV Typical at 500-mA Load
Stable With 1-µF Ceramic Input and Output Capacitors
Thermal-Overload and Short-Circuit Protection
Reverse Current Protection
No Noise Bypass Capacitor Required
Output Automatic Discharge for Fast Turnoff
Power-Good Output With 140-µs Typical Delay
Internal Soft-Start to Limit the In-rush Current
–40°C to +125°C Operating Junction Temperature Range
Applications of LP5912Q3.3DRVRQ1
Automotive Infotainment
Telematics Systems
ADAS Cameras and Radar
Navigation Systems
Functional Block Diagram of LP5912Q3.3DRVRQ1
