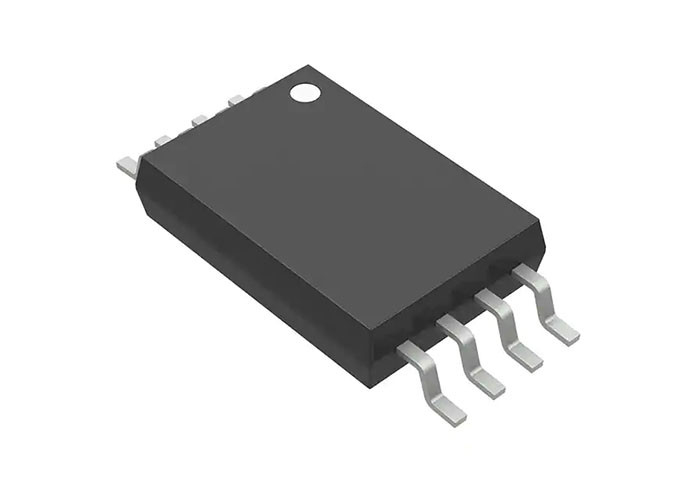

Integrated Circuit Chip Analog Comparators LM2903VQPWRQ1 Dual Differential Comparator

 Integrated Circuit Chip Analog Comparators LM2903VQPWRQ1 Dual Differential Comparator

Description of LM2903VQPWRQ1

The LM2903VQPWRQ1 device is the next generation version of the industry-standard LM2903-Q1 comparator family.This next generation family provides outstanding value for cost-sensitive applications,with features including lower offset voltage, higher supply voltage capability,lower supply current, lower input bias current, lower propagation delay,and improved 2kV ESD performance with dropin replacement convenience.
All devices consist of two independent voltage comparators that are designed to operate over a wide range of voltages. Operation from dual supplies also is possible as long as the difference between the two supplies is within 2 V to 36 V, and VCC is at least 1.5V more positive than the input common-mode voltage.The outputs can be connected to other open-collector outputs.

Product Attributes of LM2903VQPWRQ1

Features of LM2903VQPWRQ1

• Improved 2 kV HBM ESD for "B" device
• Tri-Temp testing available for "B" device
• Single supply or dual supplies
• Low supply-current independent of supply voltage 200 uA typical per comparator ("B" Versions)
• Low input bias current 3.5 nA typical ("B" device)
• Low input offset current 0.5 nA typ ("B" device)
• Low input offset voltage ±0.37 mV typ ("B" device)
• Common-mode input voltage range includes ground
• Differential input voltage range equal to maximumrated supply voltage ±36 V
• Output compatible with TTL, MOS, and CMOS
• Functional Safety-Capable

Applications of LM2903VQPWRQ1

• Automotive
• HEV/EV and power train
• Infotainment and cluster
• Body control module
• Industrial
• Appliances

Functional Block Diagram of LM2903VQPWRQ1
