Product Details:
|
| Part Number: | DRV5053VAEDBZTQ1 | Operating Supply Current: | 2.7 MA |
|---|---|---|---|
| Maximum Output Current: | 2.3 MA | Operating Supply Voltage: | 38 V |
| Minimum Operating Temperature: | - 40 C | Maximum Operating Temperature: | + 150 C |

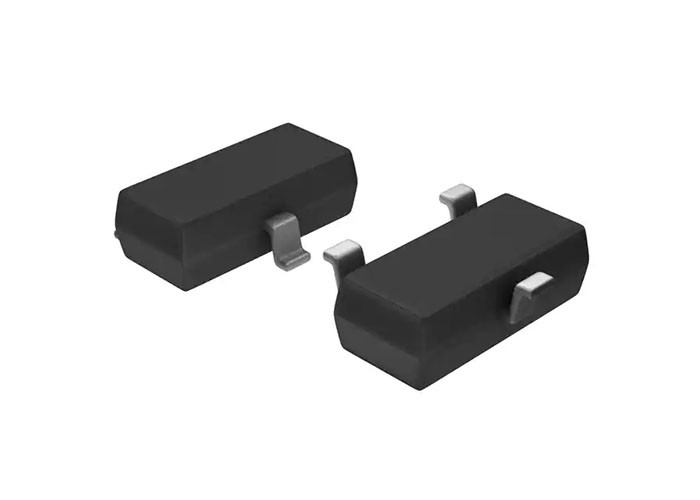

DRV5053VAEDBZTQ1 Integrated Circuit Chip Hall Effect Sensor Single Axis SOT-23-3
Description of DRV5053VAEDBZTQ1
The DRV5053VAEDBZTQ1 device is a chopper-stabilized Hall IC that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
The 0- to 2-V analog output responds linearly to the applied magnetic flux density, and distinguishes the polarity of magnetic field direction. A wide operating voltage range from 2.7 to 38 V with reverse polarity protection up to –22 V makes the device suitable for a wide range of automotive and consumer applications.
Product Attributes of DRV5053VAEDBZTQ1
|
Product Status |
Active |
|
Technology |
Hall Effect |
|
Axis |
Single |
|
Output Type |
Analog Voltage |
|
Sensing Range |
±9mT |
|
Voltage - Supply |
2.7V ~ 38V |
|
Current - Supply (Max) |
3.6mA |
|
Current - Output (Max) |
2.3mA |
|
Bandwidth |
20kHz |
|
Operating Temperature |
-40°C ~ 150°C (TA) |
|
Features |
Temperature Compensated |
|
Supplier Device Package |
SOT-23-3 |
|
Mounting Type |
Surface Mount |
|
Package / Case |
TO-236-3, SC-59, SOT-23-3 |
Protection Features of DRV5053VAEDBZTQ1
Applications of DRV5053VAEDBZTQ1
Functional Block Diagram of DRV5053VAEDBZTQ1
