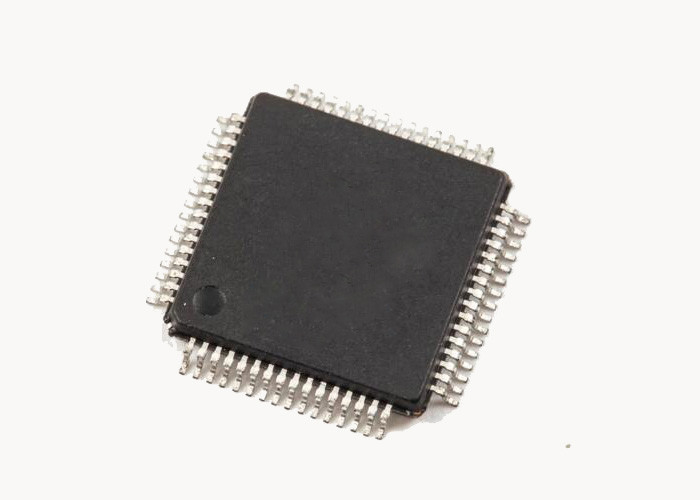

Integrated Circuit Chip MKV10Z128VLH7 MKV10Z128 75MHz Microcontroller IC LQFP64

Integrated Circuit Chip MKV10Z128VLH7 MKV10Z128 75MHz Microcontroller IC LQFP64

Product Description Of MKV10Z128VLH7

MKV10Z128VLH7 is built on ARM CortexM0+core and enabled by innovative 90nm thin film storage (TFS) flash process technology.
MKV10Z128VLH7 is an extension of the existing KV10x family providing increased memory, higher pin count, additional FTMs and a FlexCAN serial interface.
MKV10Z128VLH7 Multipurpose clock generator (MCG) with frequencylocked loop referencing either internal or external reference clock.

Specification Of MKV10Z128VLH7

Features Of MKV10Z128VLH7

• Up to 75 MHz ARM Cortex-M0+ based core
• Up to 128 KB of program flash memory
• Up to 16 KB of RAM
• Nine low-power modes to provide power optimization based on application requirements
• 8-channel DMA controller
• SWD interface and Micro Trace buffer
• Bit Manipulation Engine (BME)
• External watchdog timer
• Advanced independent clocked watchdog
• Memory Mapped Divide and Square Root (MMDVSQ) module

Applications Of MKV10Z128VLH7

• Industrial motor control applications
• Inverters
• Low-end power conversion applications

Input Signal Measurement Reference Of MKV10Z128VLH7
