Product Details:
|
| Part Number: | TPS79333DBVRQ1 | Number Of Outputs: | 1 Output |
|---|---|---|---|
| Minimum Operating Temperature: | - 40 C | Maximum Operating Temperature: | + 125 C |
| Dropout Voltage: | 112 MV | Height: | 1.15 Mm |
| Length: | 2.9 Mm | Width: | 1.6 Mm |

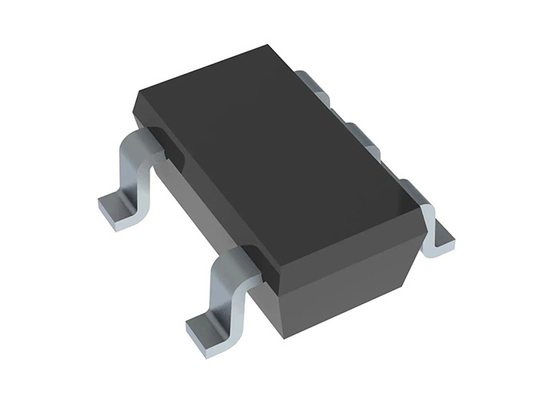

TPS79333DBVRQ1 Linear Voltage Regulator IC Positive Fixed 1 Output 200mA SOT-23-5
Product Description Of TPS79333DBVRQ1
The TPS79333DBVRQ1 is low-dropout (LDO) lowpower linear voltage regulators features high powersupply rejection ratio (PSRR), ultralow noise, fast start-up, and excellent line and load transient responses in a small-outline SOT-23 package. TPS79333DBVRQ1 device is stable, with a small 2.2-μF ceramic capacitor on the output. The TPS79333DBVRQ1 uses an advanced, proprietary,BiCMOS fabrication process to yield extremely low dropout voltages .Each device achieves fast start-up times, while consuming very low quiescent current. Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1μA. The TPS79333DBVRQ1 exhibits approximately 32 μVRMS of output voltage noise with a 0.1-μF bypass capacitor. Applications with analog components that are noise sensitive,such as portable RF electronics, benefit from the high PSRR and low-noise features, as well as the fast response time.
Specification Of TPS79333DBVRQ1
|
Product Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
5.5V |
|
Voltage - Output (Min/Fixed) |
3.3V |
|
Voltage Dropout (Max) |
0.18V @ 200mA |
|
Current - Output |
200mA |
|
Current - Quiescent (Iq) |
220 µA |
|
PSRR |
70dB ~ 43dB (100Hz ~ 100kHz) |
|
Control Features |
Enable |
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
|
Operating Temperature |
-40°C ~ 125°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
SC-74A, SOT-753 |
|
Supplier Device Package |
SOT-23-5 |
Features Of TPS79333DBVRQ1
Qualified For Automotive Applications
AEC-Q100 Qualified With the Following Results:Device Temperature Grade 1: –40°C to +125°C;Device HBM ESD Classification Level 1C;Device CDM ESD Classification Level C2
200-mA Low-Dropout Regulator With EN
Available in 1.8-V, 2.5-V, 2.8-V, 3-V, 3.3-V, 4.75-V, and Adjustable Options
High PSRR (70 dB at 10 kHz)
Ultralow Noise (32 μV)
Fast Start-Up Time (50 μs)
Stable With a 2.2-μF Ceramic Capacitor
Excellent Load and Line Transient
Very Low Dropout Voltage(112 mV at Full Load)
5-Pin SOT-23 (DBV) Package
Typical Application Of TPS79333DBVRQ1
