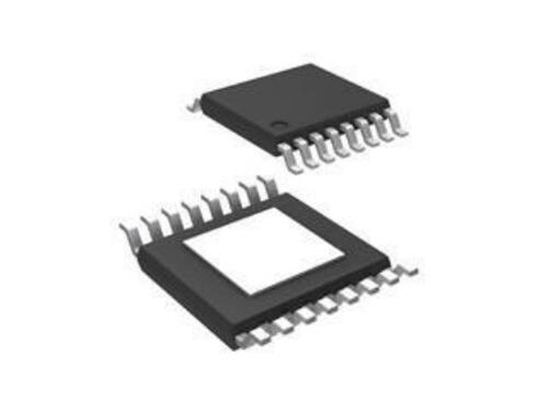

2.1MHz LM53602AQPWPRQ1 LM53602 TSSOP16 Synchronous StepDown Converters

2.1MHz LM53602AQPWPRQ1 LM53602 TSSOP16 Synchronous StepDown Converters

Product Description Of LM53602AQPWPRQ1

LM53602AQPWPRQ1 buck regulators are specifically designed for automotive applications, providing an output voltage of 5 V or 3.3 V (with ADJ option) at 3 A or 2 A, from an input voltage of up to 36 V.
LM53602AQPWPRQ1 regulate from an input of up to 20 V, while providing an output of 5 V at a switching frequency of 2.1 MHz.
LM53602AQPWPRQ1 regulate a 3.3 V output from an input voltage of only 3.5 V.

Specification Of LM53602AQPWPRQ1

Features Of LM53602AQPWPRQ1

• 3 A or 2 A maximum load current
• Input Voltage Range from 3.5 V to 36 V: Transients to 42 V
• Output Voltage Options: 5 V, 3.3 V, ADJ
• 2.1 MHz Fixed Switching Frequency
• ±2% Output Voltage Tolerance
• –40°C to 150°C Junction Temperature Range
• 1.7 µA Shutdown Current (typical)
• 24 µA Input Supply Current at No Load (typical)
• No external Feed-back Divider Required for 5 V or 3.3 V output
• Reset Output With Filter and Delay
• Automatic Light Load Mode for Improved Efficiency
• User-Selectable Forced PWM mode (FPWM)

Applications Of LM53602AQPWPRQ1

• Navigation/GPS
• Instrument Cluster
• ADAS, Infotainment, HUD​

Simplified Schematic Of LM53602AQPWPRQ1

Pin Configuration Of LM53602AQPWPRQ1

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
