Product Details:
|
| Part Number: | AMC1035QDRQ1 | Gain Error: | 0.02 % |
|---|---|---|---|
| Maximum Clock Frequency: | 21 MHz | Reference Voltage: | 2.5 V |
| Signal To Noise Ratio: | 87 DB | Data Interface: | Serial |

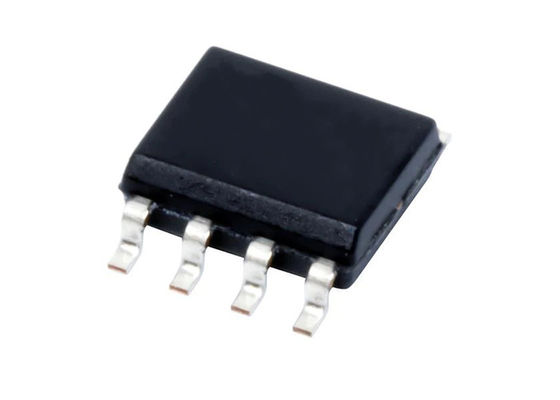

AMC1035QDRQ1 Delta Sigma Modulator With a Bipolar Input of 1V and Reference Output of 2.5V
Product Description Of AMC1035QDRQ1
The AMC1035QDRQ1 is a precision, delta-sigma (ΔΣ) modulator that operates from a single 3.0-V to 5.5-V supply and with an externally supplied clock signal in the range of 9 MHz to 21 MHz. In Manchester mode,the specified clock range is 9 MHz to 11 MHz. The differential ±1-V input structure of the device is optimized for voltage and temperature sensing applications.
The AMC1035QDRQ1 can also be used for high common-mode AC voltage sensing with a digital isolator and isolated power supply.
Specification Of AMC1035QDRQ1
|
Product Status |
Active |
|
Type |
Sigma-Delta Modulator |
|
Number of Channels |
1 |
|
Resolution (Bits) |
16 b |
|
Sampling Rate (Per Second) |
82k |
|
Data Interface |
Serial |
|
Voltage Supply Source |
Analog and Digital |
|
Voltage - Supply |
3V ~ 5.5V, 3V ~5.5V |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
8-SOIC (0.154", 3.90mm Width) |
|
Supplier Device Package |
8-SOIC |
Features Of AMC1035QDRQ1
AEC-Q100 qualified for automotive applications:
Temperature grade 1: –40°C to +125°C, TA
Delta-sigma modulator optimized for voltage and temperature sensing:
Input voltage range: ±1 V
High differential input resistance: 1.6 GΩ (typ)
Integrated 2.5-V, ±5-mA reference for ratiometric measurement
Excellent DC performance:
Offset error: ±0.5 mV (max)
Offset drift: ±6 µV/°C (max)
Gain error: ±0.25% (max)
Gain drift: ±45 ppm/°C (max)
Ratiometric gain drift: ±15 ppm/°C (max)
Selectable Manchester encoded or uncoded bitstream output
Applications of AMC1035QDRQ1
Voltage and temperature sensing in:
Traction inverters
Onboard chargers
DC/DC converters
Integrated power modules
Application Example Of AMC1035QDRQ1
