Product Description Of KSZ8895RQXI

KSZ8895RQXI is a highly-integrated, Layer 2 managed, five-port switch with numerous features designed to reduce system cost.
KSZ8895RQXI Intended for cost-sensitive 10/100Mbps five-port switch systems with low power consumption, on-chip termination, and internal core power controllers.
KSZ8895RQXI supports high-performance memory bandwidth and shared memory-based switch fabric with non-blocking configuration.
KSZ8895RQXI provides multiple CPU data interfaces to effectively address both current and emerging fast Ethernet applications when Port 5 is configured to separate MAC5 with SW5-MII/RMII and PHY5 with P5-MII/RMII interfaces.

Specification Of KSZ8895RQXI

Features Of KSZ8895RQXI

• IEEE 802.1q VLAN Support for up to 128 Active VLAN Groups (Full-Range 4096 of VLAN IDs)
• Static MAC Table Supports up to 32 Entries
• VLAN ID Tag/Untagged Options, Per Port Basis
• IEEE 802.1p/q Tag Insertion or Removal on a Per Port Basis Based on Ingress Port (Egress)
• Programmable Rate Limiting at the Ingress and Egress on a Per Port Basis
• Jitter-Free Per Packet Based Rate Limiting Support
• Broadcast Storm Protection with Percentage Control (Global and Per Port Basis)
• IEEE 802.1d Rapid Spanning Tree Protocol RSTP Support
• Tail Tag Mode (1 Byte Added Before FCS) Support at Port 5 to Inform the Processor Which Ingress Port Receives the Packet
• 1.4 Gbps High-Performance Memory Bandwidth and Shared Memory Based Switch Fabric with Fully Non-Blocking Configuration
• Dual MII with MAC 5 and PHY 5 on Port 5, SW5- MII/RMII for MAC 5 and P5-MII/RMII for PHY 5
• Enable/Disable Option for Huge Frame Size up to 2000 Bytes Per Frame
• IGMP v1/v2 Snooping (IPv4) Support for Multicast Packet Filtering
• IPv4/IPv6 QoS Support
• Support Unknown Unicast/Multicast Address and Unknown VID Packet Filtering

Applications Of KSZ8895RQXI

• VoIP Phone
• Set-Top/Game Box
• Industrial Control
• IPTV POF
• SOHO Residential Gateway
• Broadband Gateway/Firewall/VPN
• Integrated DSL/Cable Modem
• Wireless LAN Access Point + Gateway
• Standalone 10/100 5-Port Switch

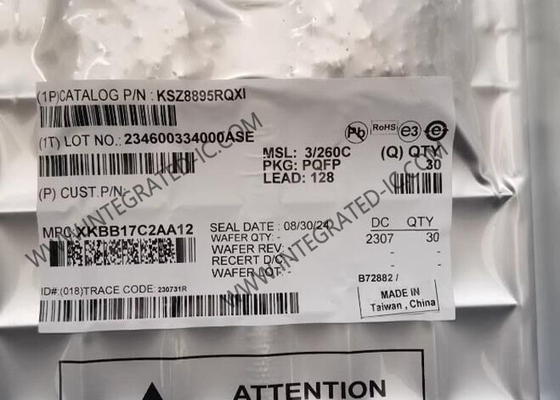

Product Photo Of KSZ8895RQXI

PIN ASSIGNMENT Of KSZ8895RQXI (TOP VIEW)
