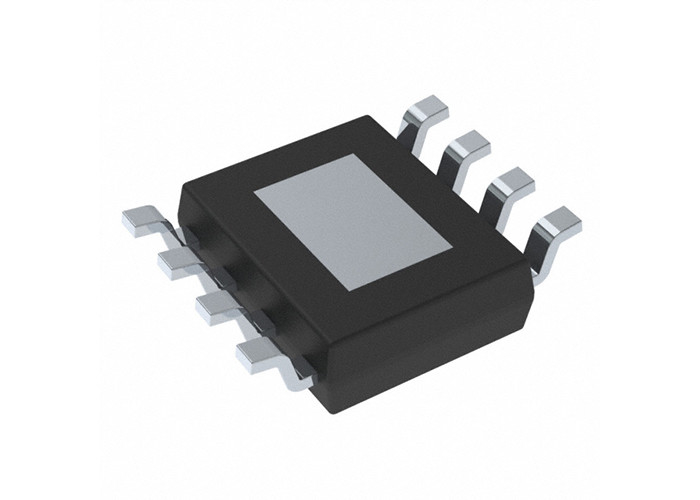

Integrated Circuit Chip UCC27200QDDARQ1 Half-Bridge Gate Driver IC Non-Inverting

Integrated Circuit Chip UCC27200QDDARQ1 Half-Bridge Gate Driver IC Non-Inverting

Product Description Of UCC27200QDDARQ1

The UCC27200QDDARQ1 is high-frequency Nchannel MOSFET drivers include a 120-V bootstrap diode and high-side and low-side drivers with independent inputs for maximum control flexibility.This allows for N-channel MOSFET control in halfbridge, full-bridge, two-switch forward, and activeclamp forward converters. The low-side and the highside gate drivers are independently controlled and matched to 1 ns between the turnon and turnoff of each other.

Specification Of UCC27200QDDARQ1

Features Of UCC27200QDDARQ1

• Qualified for Automotive Applications
• AEC-Q100 Qualified With the Following Results:
• Device Temperature Grade 1:
• 40°C to 125°C Ambient Operating Temperature Range
• Device HBM ESD Classification Level 2
• Device CDM ESD Classification Level C5
• Drives Two N-Channel MOSFETs in High-Side and Low-Side Configuration
• Maximum Boot Voltage: 120 V
• Maximum VDD Voltage: 20 V
• On-Chip 0.65-V VF, 0.6-Ω RD Bootstrap Diode
• Greater than 1 MHz of Operation
• 20-ns Propagation Delay Times
• 3-A Sink, 3-A Source Output Currents
• 8-ns Rise and 7-ns Fall Time With 1000-pF Load
• 1-ns Delay Matching
• Specified from –40°C to 140°C (JunctionTemperature)

Applications of UCC27200QDDARQ1

• Power Supplies for Telecom, Datacom, and Merchant Markets
• Half-Bridge Applications and Full-Bridge Converters
• Isolated Bus Architecture
• Two-Switch Forward Converters
• Active-Clamp Forward Converters
• High-Voltage Synchronous-Buck Converters
• Class-D Audio Amplifiers

Simplified Application Diagram of UCC27200QDDARQ1
