Product Details:
|
| Part Number: | LM26480QSQ-AA/NOPB | Input Voltage, Max: | 5.5 V |
|---|---|---|---|
| Input Voltage, Min: | 1.74 V | Maximum Output Voltage: | 3.5 V |
| Operating Supply Current: | 33 UA | Operating Temperature: | -40°C ~ 85°C |

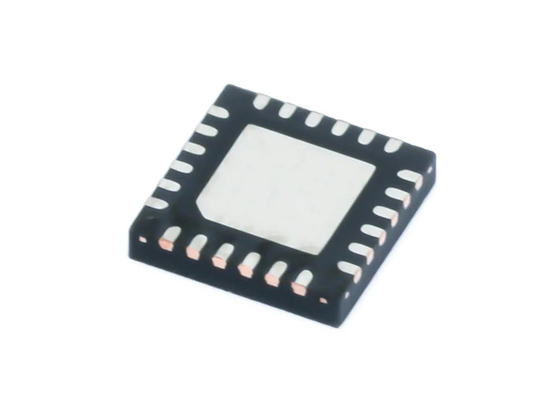

LM26480QSQ-AA/NOPB Dual 2MHz 1.5A Buck Regulators and Dual 300mA LDO Linear Voltage Regulators
Product Description Of LM26480QSQ-AA/NOPB
The LM26480QSQ-AA/NOPB is an automotive-qualified multifunctional power management unit (PMU), optimized for low-power digital applications.This device integrates two highly efficient 1.5-A step-down DCDC converters and two 300-mA linear regulators. The DC-DC buck converters provide typical efficiencies of 96%, allowing for minimal power consumption.Features include soft start, undervoltage lockout,current overload protection, thermal overload protection, and an internal power-on-reset (POR) circuit, which monitors the output voltage levels on bucks 1 and 2.
Specification Of LM26480QSQ-AA/NOPB
|
Product Status |
Active |
|
Topology |
Step-Down (Buck) Synchronous (2), Linear (LDO) (2) |
|
Number of Outputs |
4 |
|
Frequency - Switching |
2MHz |
|
Voltage/Current - Output 1 |
0.8V ~ 2V, 1.5A |
|
Voltage/Current - Output 2 |
1V ~ 3.3V, 1.5A |
|
Voltage/Current - Output 3 |
1V ~ 3.5V, 300mA |
|
w/LED Driver |
No |
|
w/Supervisor |
No |
|
w/Sequencer |
No |
|
Voltage - Supply |
2.8V ~ 5.5V |
|
Operating Temperature |
-40°C ~ 85°C |
|
Mounting Type |
Surface Mount |
|
Package / Case |
24-WFQFN Exposed Pad |
|
Supplier Device Package |
24-WQFN (4x4) |
Features Of LM26480QSQ-AA/NOPB
Input Voltage: 2.8 V to 5.5 V
Compatible with Advanced Applications Processors and FPGAs
Two LDOs for Powering Internal Processor Functions and I/Os
Precision Internal Reference
Thermal Overload Protection
Current Overload Protection
External Power-On-Reset Function for Buck1 and Buck2
Undervoltage Lockout Detector to Monitor Input Supply Voltage
Applications of LM26480QSQ-AA/NOPB
