Product Description Of TPS1H100BQPWPRQ1

TPS1H100BQPWPRQ1 is 40V, 100mΩ Single-Channel Smart High-Side Power Switch.
TPS1H100BQPWPRQ1 is a fully protected highside power switch, with integrated NMOS power FET and charge pump, targeted for the intelligent control of the variable kinds of resistive, inductive, and capacitive loads.

Specification Of TPS1H100BQPWPRQ1

Features Of TPS1H100BQPWPRQ1

• Documentation available to aid functional safety system design
• Single-channel smart high-side power switch with full diagnostics
• Version A: open-drain status output
• Version B: current sense analog output
• Wide operating voltage 3.5 to 40 V
• Very-low standby current, <0.5 µA
• Operating junction temperature, –40 to 150°C
• Input control, 3.3-V and 5-V logic compatible
• High-accuracy current sense, ±30 mA at 1 A, ±4 mA at 5 mA
• Programmable current limit with external resistor, ±20% at 0.5 A
• Diagnostic enable function for multiplexing of mcu analog or digital interface

Applications Of TPS1H100BQPWPRQ1

• High-side power switch for sub-module
• Power switch for low-wattage lamp
• High-side relays and solenoids
• PLC Digital output power switch
• General resistive, inductive, and capacitive loads

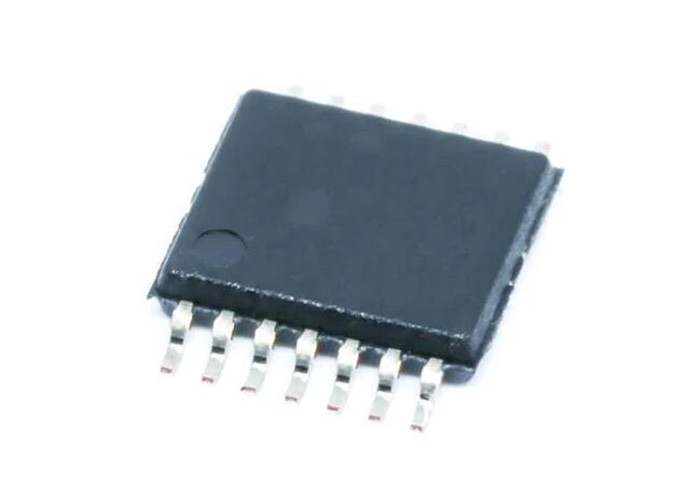

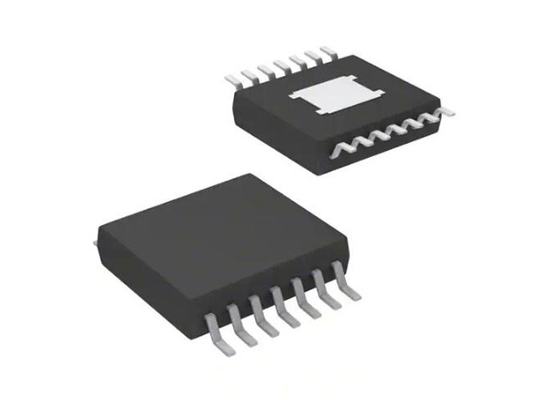

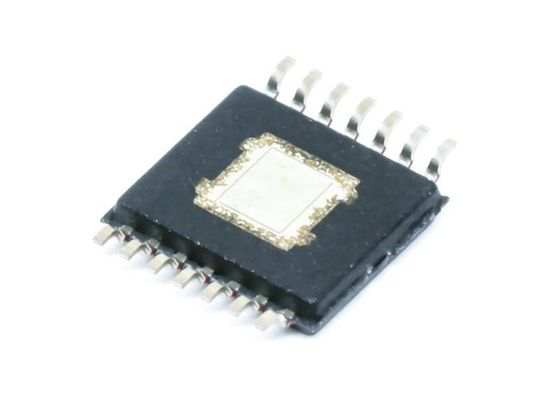

Product Photo Of TPS1H100BQPWPRQ1

Typical Application Schematic Of TPS1H100BQPWPRQ1
