Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter

Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter
Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter

Large Image :  Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: TPS61170QDRVRQ1
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 6-WSON (2x2)
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter

Description
Part Number: TPS61170QDRVRQ1 Current - Output: 960mA (Switch)
Frequency - Switching: 1.2MHz Voltage - Input (Min): 3V
Mounting Type: Surface Mount Operating Temperature: -40°C ~ 125°C (TA)

Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter​



Product Description Of TPS61170QDRVRQ1

TPS61170QDRVRQ1 is a monolithic, high-voltage switching regulator with integrated 1.2-A, 40-V power MOSFET.
TPS61170QDRVRQ1 can be configured in several standard switching-regulator topologies, including boost and SEPIC.
TPS61170QDRVRQ1 has a wide inputvoltage range to support applications with input voltage from multicell batteries or regulated 5-V, 12-V power rails.
TPS61170QDRVRQ1 operates at a 1.2-MHz switching frequency, allowing the use of low-profile inductors and low-value ceramic input and output capacitors.


Specification Of TPS61170QDRVRQ1

Part Number: TPS61170QDRVRQ1
SMD/SMT
WSON-6
Boost
3 V to 38 V
1.2 A
1 Output
3 V
18 V
2.3 mA
1.2 MHz
- 40 C
+ 125 C


Features Of TPS61170QDRVRQ1

  • Qualified for automotive applications
  • Functional Safety-Capable
  • Documentation available to aid functional safety system design
  • 3-V to 18-V Input voltage range
  • High output voltage: up to 38 V
  • 1.2-A Integrated switch
  • 1.2-MHz Fixed switching frequency
  • 12 V at 300 mA and 24 V at 150 mA from 5-V Input (typical)
  • Up to 93% efficiency
  • On-the-fly output voltage reprogramming
  • Skip-switching cycle for output regulation at light load



Applications Of TPS61170QDRVRQ1

  • HEV and EV charger systems
  • Advanced driver assistance systems (ADAS)

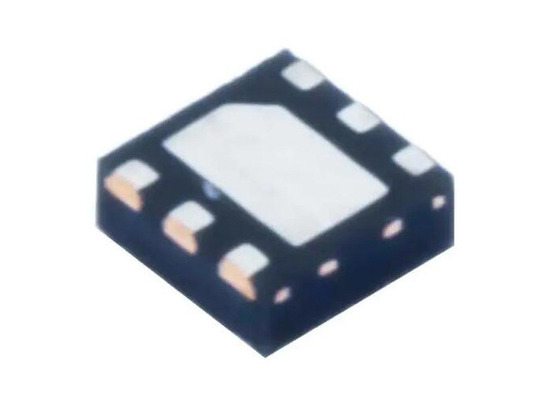

Product Photo Of TPS61170QDRVRQ1

Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter 0



Pin Configuration Of TPS61170QDRVRQ1

Integrated Circuit Chip TPS61170QDRVRQ1 TPS61170 3V High Voltage Boost Converter 1
