Product Details:
|
| Part Number: | TPS79633QDCQRQ1 | Dropout Voltage - Max: | 325 MV |
|---|---|---|---|
| Load Regulation: | 5 MV | Operating Supply Current: | 260 UA |
| Dropout Voltage: | 220 MV | Output Current: | 1 A |

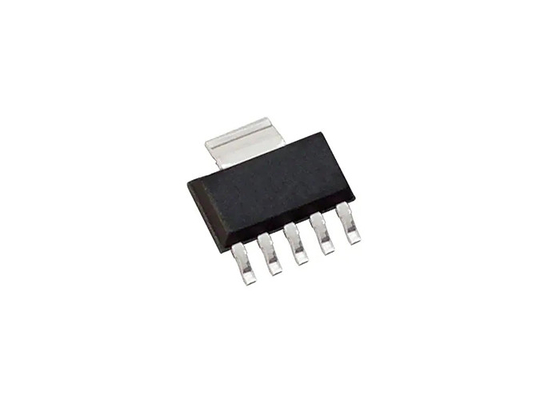

TPS79633QDCQRQ1 Ultralow-Noise 1A Low Dropout Linear Voltage Regulator IC
Product Description Of TPS79633QDCQRQ1
The TPS79633QDCQRQ1 is low-dropout (LDO), low-power, linear voltage regulators features high power-supply rejection ratio (PSRR), ultralow-noise, fast start-up,and excellent line and load transient responses in a small-outline SOT223-6 package.Each device in the family is stable with a small 1-μF ceramic capacitor on the output. 1 The family uses an advanced, proprietary BiCMOS fabrication process to yield extremely low dropout voltages (for example,250 mV at 1 A). Each device achieves fast start-up times (approximately 50 μs with a 0.001-μF bypass capacitor) while consuming very low quiescent current (265 μA typical). Moreover, when the device is placed in standby mode, the supply current is reduced to less than 1 μA.The TPS79633QDCQRQ1 exhibits approximately 40 μVRms of output voltage noise at 3-V output, with a 0. 1-μF bypass capacitor. Applications with analog components that are noise sensitive,such as portable RF electronics, beneft from the high-PSRR, low-noise features and the fast response time.
Specification Of TPS79633QDCQRQ1
|
Product Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
5.5V |
|
Voltage - Output (Min/Fixed) |
3.3V |
|
Voltage Dropout (Max) |
0.33V @ 1A |
|
Current - Output |
1A |
|
Current - Quiescent (Iq) |
385 µA |
|
PSRR |
59dB ~ 42dB (100Hz ~ 100kHz) |
|
Control Features |
Enable |
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity, Under Voltage Lockout (UVLO) |
|
Operating Temperature |
-40°C ~ 125°C |
|
Mounting Type |
Surface Mount |
Features Of TPS79633QDCQRQ1
1-A Low-Dropout Regulator With Enable
Available in Fixed and Adjustable (1.2 V to 5.5 V) Versions
High PSRR (53 dB at 10 kHz)
Ultralow-Noise
Fast Start-Up Time (50 μs)
Stable With a 1-μF Ceramic Capacitor
Excellent Load/Line Transient Response
Very Low Dropout Voltage (250 mV at Full Load)
Functional Block Diagram Of TPS79633QDCQRQ1
