Product Details:
|
| Part Number: | TPS76933QDBVRG4Q1 | Dropout Voltage: | 71 MV |
|---|---|---|---|
| Height: | 1.15 Mm | Length: | 2.9 Mm |
| Width: | 1.6 Mm | Load Regulation: | 12 MV |
| Line Regulation: | 0.04 % / V | Operating Supply Current: | 17 UA |

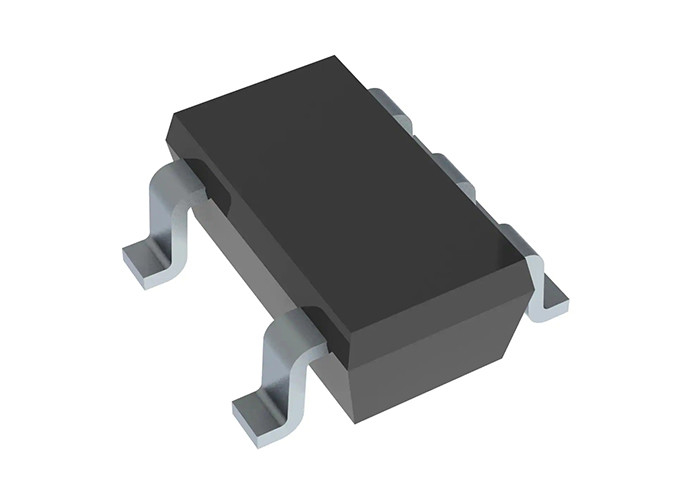

Integrated Circuit Chip TPS76933QDBVRG4Q1 Ultralow-Power 100mA Low Dropout Linear Regulators
Product Description of TPS76933QDBVRG4Q1
The TPS76933QDBVRG4Q1 is low-dropout (LDO) voltage regulators offers the benefits of low-dropout voltage, ultralow-power operation, and miniaturized packaging. These regulators feature low-dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-pin small outline integrated circuit SOT-23 package,the TPS76933QDBVRG4Q1 is ideal for micropower operations and where board space is at a premium.
Specification of TPS76933QDBVRG4Q1
|
Product Status |
Active |
|
Output Configuration |
Positive |
|
Output Type |
Fixed |
|
Number of Regulators |
1 |
|
Voltage - Input (Max) |
10V |
|
Voltage - Output (Min/Fixed) |
3.3V |
|
Voltage Dropout (Max) |
0.2V @ 100mA |
|
Current - Output |
100mA |
|
Current - Quiescent (Iq) |
28 µA |
|
PSRR |
60dB (1kHz) |
|
Control Features |
Enable |
|
Protection Features |
Over Current, Over Temperature, Reverse Polarity |
|
Operating Temperature |
-40°C ~ 125°C |
|
Mounting Type |
Surface Mount |
Feature of TPS76933QDBVRG4Q1
Qualified for Automotive Applications
100-mA Low-Dropout Regulator
Available in 1.2-V, 1.5-V, 1.8-V, 2.5-V, 2.7-V,2.8‑V, 3-V, 3.3-V and 5-V Fixed-Output and Adjustable Versions
Only 17-µA Quiescent Current at 100 mA
1-µA Quiescent Current in Standby Mode
Dropout Voltage Typically 71 mV at 100 mA
Overcurrent Limitation
-40°C to 125°C Operating Junction Temperature Range
5-Pin SOT-23 (DBV) Package
Applications of TPS76933QDBVRG4Q1
ADAS Modules
RF Modules
Wireless Modules
General Noise-Sensitive Applications
Functional Block Diagrams of TPS76933QDBVRG4Q1
Pin Configuration and Functions of TPS76933QDBVRG4Q1
