Product Details:
|
| Part Number: | MK24FN1M0VDC12 | Program Memory Size: | 1 MB |
|---|---|---|---|
| Number Of I/Os: | 83 I/O | Analog Supply Voltage: | 1.71 V To 3.6 V |
| Mounting Style: | SMD/SMT | Clock Frequency(Max): | 120 MHz |
| Highlight: | MK24FN1M0VDC12,Integrated Circuit Chip 120MHz,Microcontroller IC Chip |
||

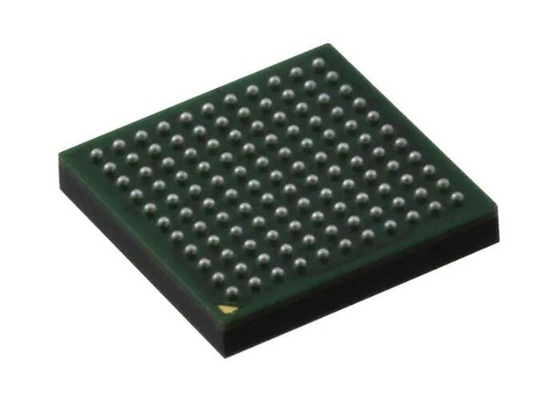

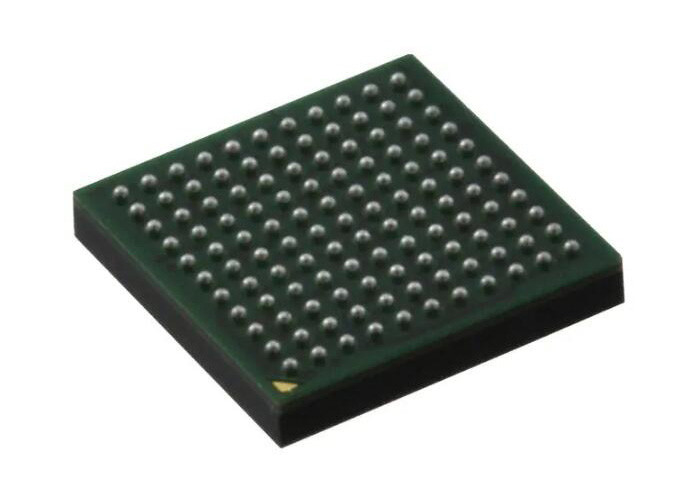

Integrated Circuit Chip MK24FN1M0VDC12 120MHz Microcontroller IC MK24FN1M0
Product Description Of MK24FN1M0VDC12
MK24FN1M0VDC12 is optimized for cost-sensitive applications requiring low-power, USB connectivity, and up to 256 KB of embedded SRAM. MK24FN1M0VDC12 share the comprehensive enablement and scalability of the Kinetis family.
MK24FN1M0VDC12 Run power consumption down to 250 μA/MHz. Static power consumption down to 5.8 μA with full state retention and 5 μs wakeup. Lowest Static mode down to 339 nA.
MK24FN1M0VDC12 USB LS/FS OTG 2.0 with embedded 3.3 V, 120 mA LDO Vreg, with USB device crystal-less operation.
Specification Of MK24FN1M0VDC12
| Part Number | MK24FN1M0VDC12 |
|
Core Processor
|
ARM® Cortex®-M4
|
|
Core Size
|
32-Bit Single-Core
|
|
Speed
|
120MHz
|
|
Connectivity
|
CANbus, EBI/EMI, I²C, IrDA, SD, SPI, UART/USART, USB, USB OTG
|
|
Peripherals
|
DMA, I²S, LVD, POR, PWM, WDT
|
|
Number of I/O
|
83
|
|
Program Memory Size
|
1MB (1M x 8)
|
|
Program Memory Type
|
FLASH
|
|
RAM Size
|
256K x 8
|
|
Voltage - Supply (Vcc/Vdd)
|
1.71V ~ 3.6V
|
|
Data Converters
|
A/D 37x16b; D/A 2x12b
|
|
Oscillator Type
|
Internal
|
|
Operating Temperature
|
-40°C ~ 105°C (TA)
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
121-XFBGA
|
|
Supplier Device Package
|
121-XFBGA (8x8)
|
Features Of MK24FN1M0VDC12
Input Signal Measurement Reference Of MK24FN1M0VDC12
Trace Data Specifications Of MK24FN1M0VDC12
