Product Details:
|
| Part Number: | SAK-TC375TP-96F300W AA | Peripherals: | DMA, I²S, PWM, WDT |
|---|---|---|---|
| Package: | 176-LQFP Exposed Pad | Program Memory Type: | FLASH |
| Oscillator Type: | Internal | Operating Temperature: | -40°C ~ 125°C (TA) |

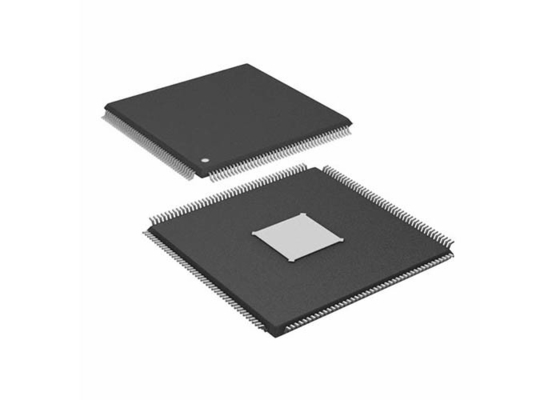

Integrated Circuit Chip SAK-TC375TP-96F300W AA 32-Bit Tri-Core FLASH Microcontroller IC
Product Description Of SAK-TC375TP-96F300W AA
SAK-TC375TP-96F300W AA belongs to the AURIX™ TC37xTP family . AURIX™ second generation (TC3xx) comes back with an increase in performance, memory sizes, connectivity and more scalability to address the new automotive and industrial trends and challenges. This family has more than 20 products to provide the most scalable portfolio of safety microcontroller. In terms of performance, T37x offers 3 cores running at 300 MHz and up to 1.1 MBytes embedded RAM, and consuming below 2 W.
Specification Of SAK-TC375TP-96F300W AA
|
Core Size |
32-Bit Tri-Core |
|
Speed |
300MHz |
|
Connectivity |
ASC, CANbus, Ethernet, FlexRay, HSSL, I²C, LINbus, MSC, PSI, QSPI, SENT |
|
Peripherals |
DMA, I²S, PWM, WDT |
|
Program Memory Size |
6MB (6M x 8) |
|
Program Memory Type |
FLASH |
|
RAM Size |
1.1M x 8 |
|
Voltage - Supply (Vcc/Vdd) |
3.3V, 5V |
|
Oscillator Type |
Internal |
|
Operating Temperature |
-40°C ~ 125°C (TA) |
Summary of Features of SAK-TC375TP-96F300W AA
Supporting floating point and fix point with all cores
6 MB flash/ECC protection
1.1 MB SRAM / ECC protection
100Mbit7s Gbit Ethernet
LQFP 176 Package
safety requirements up to ASIL-D/SIL3
AUTOSAR 4.2 support
Single voltage supply 5 V or 3.3 V
Standby mode controller
Potential Applications of SAK-TC375TP-96F300W AA
Safety applications:
Air bag System
Chassis domain control
Braking
Pixel lighting
Scable EPS solution
Full feature sensor fusion
Multi-purpose camera
Active suspension control system
Automotive 24 GHz radar system
Highly integrated automotive 77 GHz radar chipset
Sensor fusions
FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
