Product Details:
|
| Part Number: | IMBG120R140M1H | FET Type: | N-Channel |
|---|---|---|---|
| Technology: | Silicon Carbide | Package: | PG-TO263-7-12 |
| Mounting Type: | Surface Mount | FET Feature: | Standard |
| Highlight: | IMBG120R140M1H Integrated Circuit Chip,SiC MOSFET Integrated Circuit Chip,1200V SiC MOSFET Transistors |
||

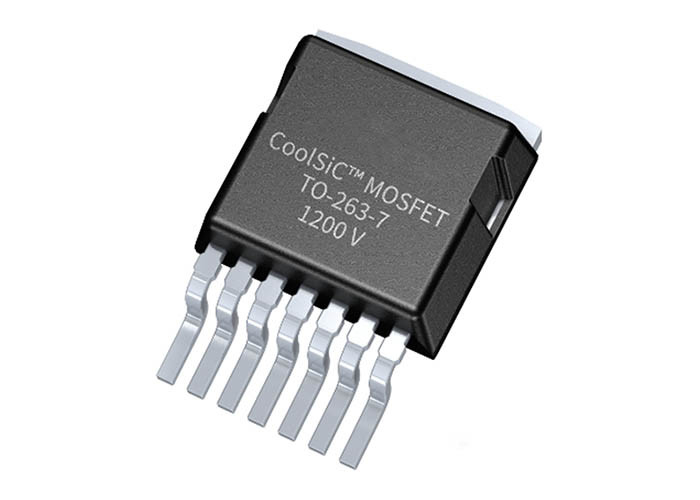

Integrated Circuit Chip IMBG120R140M1H 1200 V SiC Trench MOSFET Transistors in TO-263-7 package
Specification Of IMBG120R140M1H
|
Product Status |
Active |
|
FET Type |
N-Channel |
|
Technology |
SiCFET (Silicon Carbide) |
|
Drain to Source Voltage (Vdss) |
1200 V |
|
Current - Continuous Drain (Id) @ 25°C |
18A (Tc) |
|
Rds On (Max) @ Id, Vgs |
189mOhm @ 6A, 18V |
|
Vgs(th) (Max) @ Id |
5.7V @ 2.5mA |
|
Gate Charge (Qg) (Max) @ Vgs |
13.4 nC @ 18 V |
|
Vgs (Max) |
+18V, -15V |
|
Input Capacitance (Ciss) (Max) @ Vds |
491 pF @ 800 V |
|
FET Feature |
Standard |
|
Power Dissipation (Max) |
107W (Tc) |
|
Operating Temperature |
-55°C ~ 175°C (TJ) |
Features of IMBG120R140M1H
Very low switching losses
Short circuit withstand time 3 µs
Fully controllable dV/dt
Benchmark gate threshold voltage, VGS(th) = 4.5V
Robust against parasitic turn on, 0V turn-off gate voltage can be applied
Robust body diode for hard commutation
XT interconnection technology for best-in-class thermal performance
Package creepage and clearance distance > 6.1mm
Sense pin for optimized switching performance
Benefits of IMBG120R140M1H
Efficiency improvement
Enabling higher frequency
Increased power density
Cooling effort reduction
Reduction of system complexity and cost
Potential applications of IMBG120R140M1H
Drives
Infrastructure – Charger
Energy generation - Solar string inverter and solar optimizer
Industrial power supplies - Industrial UPS
