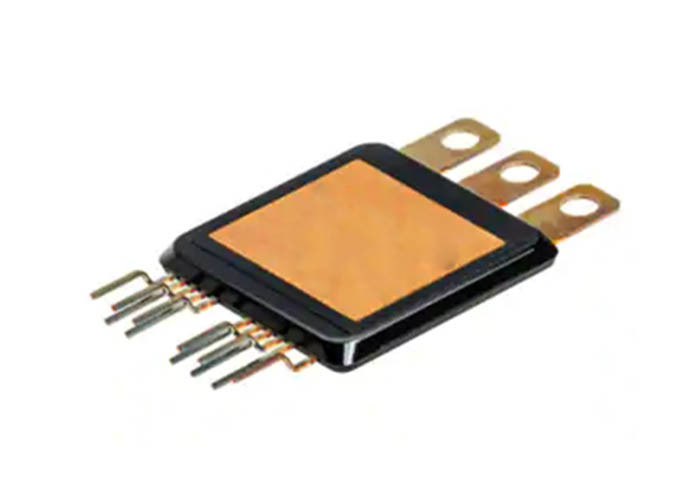

FF450R08A03P2 Automotive IGBT Modules Power Driver Module IGBT Half Bridge 750V 450A

Automotive IGBT Modules FF450R08A03P2 Power Driver Module IGBT Half Bridge 750V 450A Module

Description of FF450R08A03P2
The FF450R08A03P2 is a very compact half-bridge module targeting Hybrid- and Electric Vehicle applications. The module is based on Infineon’s long-term experience developing IGBT power modules and implements the EDT2 IGBT generation. The innovative and small package is designed for Double Sided Cooling (DSC) with superior thermal performance and enables highest power density. It targets main inverters with power up to 75 kW.

Specification Of FF450R08A03P2

Typical Applications of FF450R08A03P2
Automotive Applications
Hybrid Electrical Vehicles (H)EV
Optimized for automotive applications with DC link voltages up to 450 V and gate driver voltage level of-8V/+15V

Electrical Features of FF450R08A03P2
Integrated Current Sensor
Integrated Temperature Sensor
Low Inductive Design
Blocking voltage 750V
Low Switching Losses
Short-time extended Operation Temperature

Mechanical Features of FF450R08A03P2
2.5kV AC 1min Insulation
Double sided cooling
Compact design
RoHS comp

Package outlines of FF450R08A03P2
