Product Details:
|
| Part Number: | FS950R08A6P2B | Input: | Standard |
|---|---|---|---|
| Current - Collector Cutoff (Max): | 1 MA | Mounting Type: | Chassis Mount |
| Operating Temperature(Min): | -40°C (TJ) | Operating Temperature(Max): | 175°C (TJ) |
| Highlight: | FS950R08A6P2B Automotive IGBT Modules,Six Cell Automotive IGBT Modules |
||

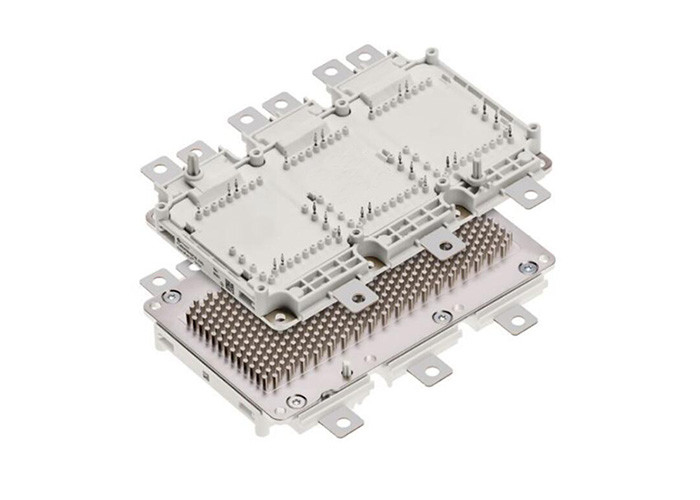

750V 950A FS950R08A6P2B FS950R08 Six-Cell Automotive IGBT Modules
Product Description Of FS950R08A6P2B
FS950R08A6P2B HybridPACK™ Drive module with EDT2 IGBT and Diode is an automotive qualified power module designed for Hybrid- and Electric Vehicle applications.
The product FS950R08A6P2B comes with a PinFin baseplate and performance ceramic.
FS950R08A6P2B was optimized for applications with switching frequencies in the range of 10 kHz.
Specification Of FS950R08A6P2B
| Part Number | FS950R08A6P2B |
|
IGBT Type
|
Trench Field Stop
|
|
Configuration
|
Three Phase Inverter
|
|
Voltage - Collector Emitter Breakdown (Max)
|
750 V
|
|
Current - Collector (Ic) (Max)
|
950 A
|
|
Power - Max
|
870 W
|
|
Vce(on) (Max) @ Vge, Ic
|
1.35V @ 15V, 450A
|
Features Of FS950R08A6P2B
Applications Of FS950R08A6P2B
Package Outlines Of FS950R08A6P2B
