FS650R08A4P2 FS650R08 Automotive IGBT Modules 750V 650A Three Phase Inverter

Automotive IGBT Modules FS650R08A4P2 FS650R08 750V 650A Three Phase Inverter

Product Description Of FS650R08A4P2

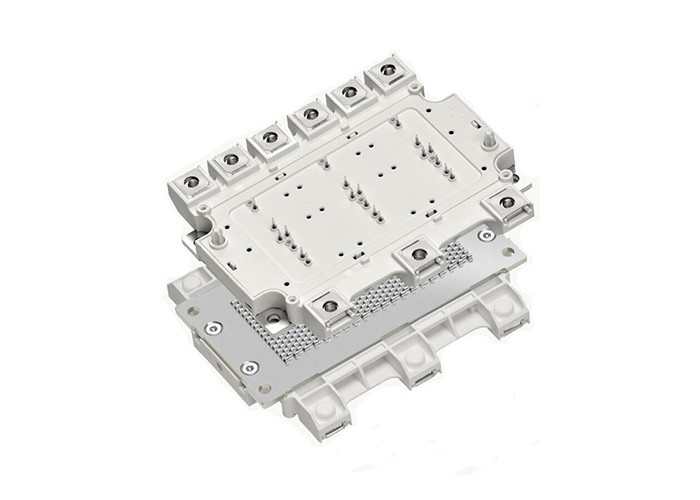

FS650R08A4P2 HybridPACK™ DC6i is a very compact six-pack module (750V/650A) optimized for hybrid and electrical vehicles.
FS650R08A4P2 complements the benchmark EDT2 IGBT generation with Direct Cooled Base Plate with Ribbon Bonds, NTC temperature sensor and PressFIT contact technology for up to 500V DC and 400 Arms capability enabling inverter designs around 100kW power range.
The direct cooled baseplate with ribbon bonds structure in the FFS650R08A4P2 product shows superior thermal characteristics.
FS650R08A4P2 Optimized for automotive applications with DC link voltages up to 470V.

Specification Of FS650R08A4P2

Features Of FS650R08A4P2

• Blocking voltage 750V
• Ic nom: 650A
• Tvj op = 150°C
• Short-time extended Operation Temperature Tvj op = 175°C
• EDT2 chip technology optimized in the range of 10kHz switching frequencies
• 5kV AC 1min @ 50Hz

Package Outlines Of FS650R08A4P2
