Product Details:
|
| Part Number: | PMDXB600UNE | Power Dissipation: | 380 MW |
|---|---|---|---|
| Fall Time: | 51 Ns | Rise Time: | 9.2 Ns |
| Qg - Gate Charge: | 400 PC | Number Of Channels: | 2 Channel |
| Highlight: | PMDXB600UNE MOSFET Transistors,20V MOSFET Transistors,N channel MOSFET Transistors |
||

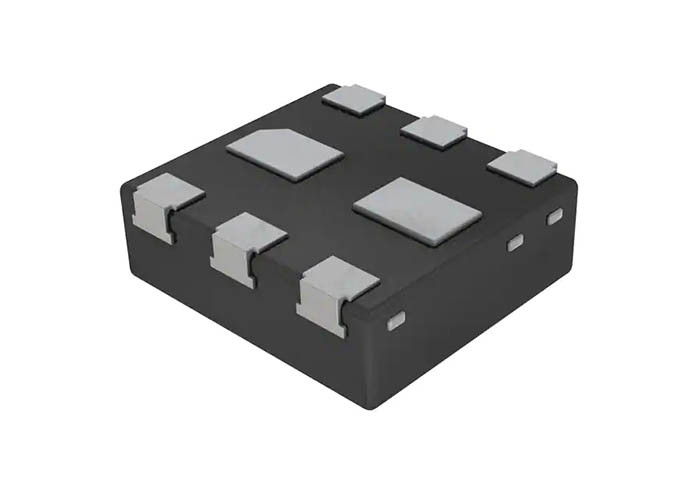

PMDXB600UNE 20V Dual N-channel Trench MOSFET Transistors 6-XFDFN Package
Product Description Of PMDXB600UNE
PMDXB600UNE is Dual N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1010B-6 (SOT1216) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.
Specification Of PMDXB600UNE
|
Product Status |
Active |
|
FET Type |
2 N-Channel (Dual) |
|
FET Feature |
Logic Level Gate |
|
Drain to Source Voltage (Vdss) |
20V |
|
Current - Continuous Drain (Id) @ 25°C |
600mA |
|
Rds On (Max) @ Id, Vgs |
620mOhm @ 600mA, 4.5V |
|
Vgs(th) (Max) @ Id |
950mV @ 250µA |
|
Gate Charge (Qg) (Max) @ Vgs |
0.7nC @ 4.5V |
|
Input Capacitance (Ciss) (Max) @ Vds |
21.3pF @ 10V |
|
Power - Max |
265mW |
|
Operating Temperature |
-55°C ~ 150°C (TJ) |
|
Mounting Type |
Surface Mount |
|
Package / Case |
6-XFDFN Exposed Pad |
|
Supplier Device Package |
DFN1010B-6 |
Features Of PMDXB600UNE
Applications Of PMDXB600UNE
Package outline Of PMDXB600UNE
