| Part Number: | AIMBG120R160M1 | Product Type: | MOSFET |
|---|---|---|---|
| Package: | TO-263-7 | Operating Temperature: | -55 °C - 175 °C |
| Polarity: | N | RthJC Max: | 160 MΩ |
| Highlight: | AIMBG120R160M1 Integrated Circuit Chip,Integrated Circuit Chip SiC Mosfet,1200V SiC Mosfet |
||

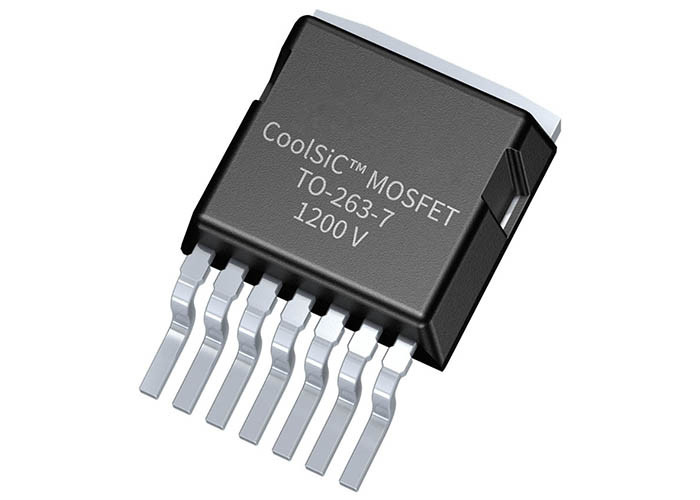

Integrated Circuit Chip AIMBG120R160M1 1200V SiC Mosfet Discretes for Automotive
Description of AIMBG120R160M1
The AIMBG120R160M1 is 1200V SiC Mosfet for Automotive has been developed for current and future On-Board Charger and DC-DC applications in hybrid and electric vehicles.
The compact SMD housing D²PAK (PG-TO263-7) enables a high degree of automation at the customer manufacturing facility and further reduces cost on system level.
Specification Of AIMBG120R160M1
|
Ciss |
258 pF |
|
Coss |
14 pF |
|
ID (@25°C) max |
15 A |
|
Operating Temperature min max |
-55 °C 175 °C |
|
Ptot (@ TA=25°C) max |
82 W |
|
Package |
TO-263-7 |
|
Polarity |
N |
|
QG |
9.3 nC |
|
Qualification |
Automotive |
|
RDS (on) (@ Tj = 25°C) |
160 mΩ |
|
RthJC max |
1.82 K/W |
|
VDS |
1200 V |
|
VGSS, off |
0 |
|
VGSS, on |
20 |
Features of AIMBG120R160M1
Revolutionary semiconductor material - Silicon Carbide
Very low switching losses
Threshold-free on state characteristic
0V turn-off gate voltage
Benchmark gate threshold voltage, VGS(th)=4.5V
Fully controllable dv/dt
Commutation robust body diode, ready for synchronous rectification
Temperature independent turn-off switching losses
Sense pin for optimized switching performance
Suitable for HV creepage requirements
XT interconnection technology for best-in-class thermal performance
Benefits of AIMBG120R160M1
Efficiency improvement
Enabling higher frequency
Increased power density
Cooling effort reduction
Reduction of system complexity and cost
Potential Applications of AIMBG120R160M1
On-board Charger
DC-DC Converter
