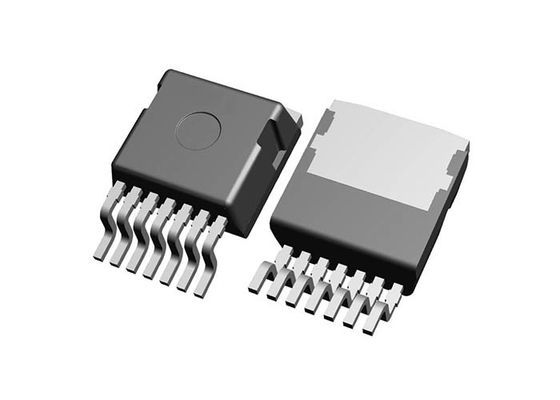

AIMBG120R060M1 Integrated Circuit Chip 33A Silicon Carbide MOSFET Transistors TO-263-7

Integrated Circuit Chip AIMBG120R060M1 33A Silicon Carbide MOSFET Transistors TO-263-7

Description of AIMBG120R060M1

AIMBG120R060M1 is 1200V SiC Mosfet for Automotive family has been developed for current and future On-Board Charger and DC-DC applications in hybrid and electric vehicles.
Built on a state-of-the-art SiC trench technology combined with .XT interconnection technology the silicon carbide mosfet is specifically designed to meet the high requirements demanded by the automotive industry with regards to reliability, quality and performance.
The compact SMD housing D²PAK (PG-TO263-7) enables a high degree of automation at the customer manufacturing facility and further reduces cost on system level.

Specification Of AIMBG120R060M1

Features of AIMBG120R060M1

• Revolutionary semiconductor material - Silicon Carbide
• Very low switching losses
• Threshold-free on state characteristic
• 0V turn-off gate voltage
• Benchmark gate threshold voltage, VGS(th)=4.5V
• Fully controllable dv/dt
• Commutation robust body diode, ready for synchronous rectification
• Temperature independent turn-off switching losses
• Sense pin for optimized switching performance
• Suitable for HV creepage requirements
• XT interconnection technology for best-in-class thermal performance
