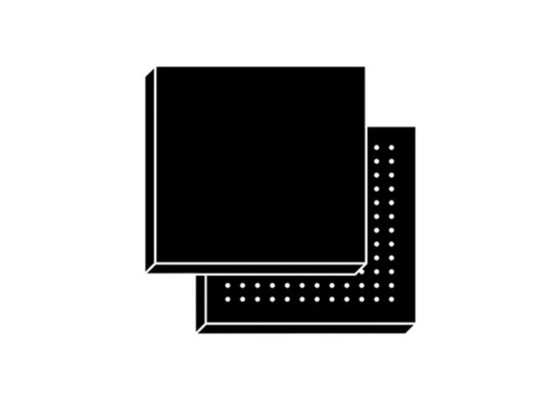

High-performance STM32H747AII6 32Bit Dual Core FLASH Microcontroller IC 169-UFBGA Package

High-performance STM32H747AII6 32Bit Dual Core FLASH Microcontroller IC 169-UFBGA Package

Product Description Of STM32H747AII6

STM32H747AII6 devices incorporate high-speed embedded memories with a dual-bank Flash memory of up to 2 Mbytes, up to 1 Mbyte of RAM (including 192 Kbytes of TCM RAM, up to 864 Kbytes of user SRAM and 4 Kbytes of backup SRAM), as well as an extensive range of enhanced I/Os and peripherals connected to APB buses, AHB buses, 2x32-bit multi-AHB bus matrix and a multi layer AXI interconnect supporting internal and external memory access.

Specification Of STM32H747AII6

Features of STM32H747AII6

• Memories
• Up to 2 Mbytes of Flash memory with read-while-write support
• 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), 864 Kbytes of user SRAM, and 4 Kbytes of SRAM in Backup domain
• Dual mode Quad-SPI memory interface running up to 133 MHz
• Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, NOR/NAND Flash memory clocked up to 125 MHz in Synchronous mode
• CRC calculation unit

Advanced peripherals including of STM32H747AII6

• flexible memory control (FMC) interface
• Quad-SPI Flash memory interface
• camera interface for CMOS sensors
• LCD-TFT display controller
• JPEG hardware compressor/decompressor
• DSI Host interface

FAQ
Q. Are your products original?
A: Yes, all products are original, new original import is our purpose.
Q:Which Certificates do you have?
A:We are ISO 9001:2015 Certified Company and member of ERAI.
Q:Can you support small quantity order or sample?Is the sample free?
A:Yes,we support sample order and small order.Sample cost is different according to your order or project.
Q:How to ship my order? Is it safe?
A:We use express to ship,such as DHL,Fedex,UPS,TNT,EMS.We can also use your suggested forwarder.Products will be in good packing and ensure the safety and we are responsible to product damage to your order.
Q:What about the lead time?
A:We can ship stock parts within 5 working days.If without stock,we will confirm lead time for you based on your order quantity.
