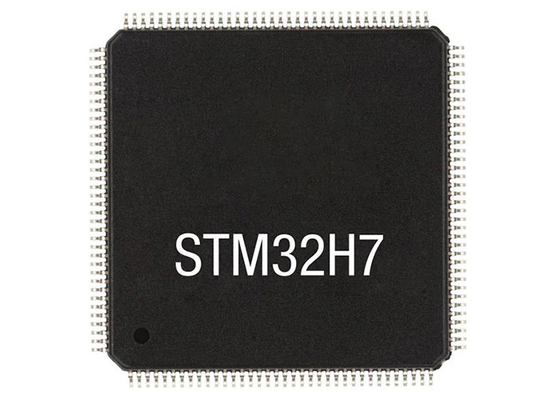

Integrated Circuit Chip STM32H747BGT6 High-performance DSP with DP-FPU ARM Microcontroller IC

Integrated Circuit Chip STM32H747BGT6 High-performance DSP with DP-FPU ARM Microcontroller IC

Product Description Of STM32H747BGT6

STM32H747BGT6 is High-performance and DSP with DP-FPU, Arm Cortex-M7 + Cortex-M4 MCU with 1MBytes of Flash memory, 1MB RAM, 480 MHz CPU, Art Accelerator, L1 cache, external memory interface, large set of peripherals, SMPS, MIPI-DSI.

Specification Of STM32H747BGT6

Features of STM32H747BGT6

• Security
• ROP, PC-ROP, active tamper
• General-purpose input/outputs
• Up to 168 I/O ports with interrupt capability
• Reset and power management
• 3 separate power domains which can be independently clock-gated or switched off:
• D1: high-performance capabilities
• D2: communication peripherals and timers
• D3: reset/clock control/power management
• 1.62 to 3.6 V application supply and I/Os
• POR, PDR, PVD and BOR
• Dedicated USB power embedding a 3.3 V internal regulator to supply the internal PHYs
• Embedded regulator (LDO) to supply the digital circuitry
• High power-efficiency SMPS step-down converter regulator to directly supply VCORE and/or external circuitry
• Voltage scaling in Run and Stop mode (6 configurable ranges)
• Backup regulator (~0.9 V)
• Voltage reference for analog peripheral/VREF+
• 1.2 to 3.6 V VBAT supply
• Low-power modes: Sleep, Stop, Standby and VBAT supporting battery charging
