Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz

Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz
Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz

Large Image :  Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: SPC5777CDK3MME4
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: BGA416
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz

Description
Part Number: SPC5777CDK3MME4 Core Size: 32-Bit Tri-Core
Speed: 264MHz Program Memory Size: 8MB (8M X 8)
Program Memory Type: FLASH Voltage - Supply (Vcc/Vdd): 3V ~ 5.5V

Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz



Description Of SPC5777CDK3MME4

SPC5777CDK3MME4 microcontroller is a high performance multi-core MCU optimised for industrial and automotive control applications requiring advanced performance, timing systems, security and functional safety capabilities.
SPC5777CDK3MME4 features two independent Power Architecture z7 cores (running at up to 300MHz) and one z7 core (synchronised with one of the main cores).

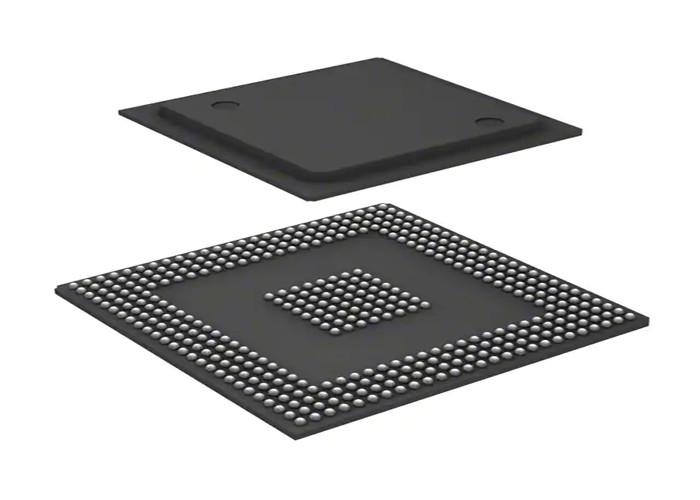

SPC5777CDK3MME4 microcontroller is available in a lead-free 416 solder ball array process ball grid array (MAPBGA) package.



Specification Of SPC5777CDK3MME4

Core Processor
e200z7
Connectivity
CANbus, EBI/EMI, Ethernet, FlexCANbus, LINbus, SCI, SPI
Peripherals
DMA, LVD, POR, Zipwire
RAM Size
512K x 8
Data Converters
A/D 16b Sigma-Delta, eQADC
Oscillator Type
Internal
Operating Temperature
-40°C ~ 125°C (TA)



Features Of SPC5777CDK3MME4

  • Three dual-issue 32-bit CPU core complexes (e200z7), two of which run simultaneously
  • 16 hardware signalling devices
  • 3-channel CRC module
  • 8MB on-chip flash memory
  • 512KB on-chip general purpose SRAM, including 64KB spare RAM
  • Enhanced modular input/output system (eMIOS) supporting 32 unified channels
  • Four independent 16-bit Σ-Δ ADCs (SDADC)
  • 10-channel response module
  • Ethernet (FEC)
  • Two PSI5 modules
  • Two SENT receiver (SRX) modules supporting 12 channels
  • Zipwire: SIPI and LFAST modules
  • Five Deserialised Serial Line Peripheral Interface (DSPI) modules
  • Five Enhanced Serial Communication Interface (eSCI) modules
  • Four Controller Local Area Network (FlexCAN) modules
  • Two M_CAN modules with FD support
  • Fault Collection and Control Unit (FCCU)
  • Clock Monitoring Unit (CMU)
  • Tamper Detection Module (TDM)
  • Cryptographic Service Engine (CSE)



Applications Of SPC5777CDK3MME4

  • Automotive applications where ASIL-D and SIL-1 functional safety (ISO26262/IEC61508) requirements need to be met
  • Engine control units (ECUs)
  • Electric DC motor control
  • Ethernet connectivity
  • Aerospace engines



Block Diagram Of SPC5777CDK3MME4

Automobile Chips SPC5777CDK3MME4 32-Bit Microcontrollers - MCU 8MB Flash 300MHz 0
