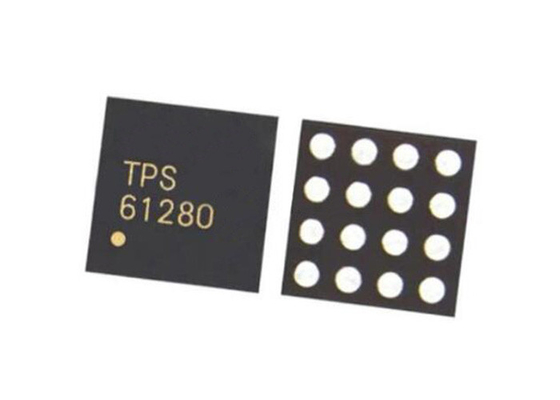

2.3MHz Power Management IC TPS61280DYFFR 5A Voltage Regulators DSBGA16

2.3MHz Power Management IC TPS61280DYFFR 5A Voltage Regulators DSBGA16

Product Description Of TPS61280DYFFR

TPS61280DYFFR voltage range is optimized for single-cell portable applications like in smart-phones or tablet PCs.
Used as a high-power pre-regulator, TPS61280DYFFR extends the battery run-time and overcomes input current- and voltage limitations of the powered system.
While in shutdown, the TPS61280DYFFR operates in a true pass-through mode with only 3-µA quiescent consumption for longest battery shelf life.

Specification Of TPS61280DYFFR

Features Of TPS61280DYFFR

• 95% Efficiency at 2.3 MHz Operation
• 3-µA Quiescent Current in Low IQ Pass-Through Mode
• Wide VIN Range From 2.3 V To 4.8 V
• IOUT ≥ 4A (Peak) at VOUT = 3.35 V, VIN ≥ 2.65 V
• Integrated Pass-Through Mode (35 mΩ)
• Programmable Valley Inductor Current Limit and Output Voltage
• True Pass-Through Mode During Shutdown
• Best-in-Class Line and Load Transient
• Low-Ripple Light-Load PFM Mode

Applications Of TPS61280DYFFR

• 2.5G, 3G, 4G Mini-Module Data Cards
• Single-Cell Ni-Rich, Si-Anode, Li-Ion, LiFePO4 Smart-Phones or Tablet PCs

Simplified Schematic Of TPS61280DYFFR
