Part Number: | IIS2MDCTR | Operating Supply Current: | 1.13 MA |
---|---|---|---|
Maximum Output Current: | 4 MA | Operating Point Min/Max: | +/- 25 G |
Operating Supply Voltage: | 2.5 V | Supply Voltage - Max: | 3.6 V |

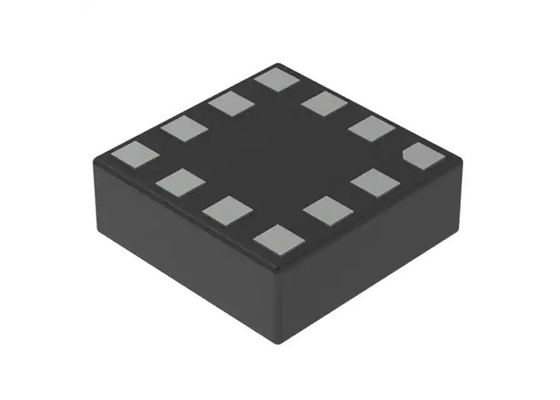

IIS2MDCTR High-accuracy Ultra-low-power 3-axis digital output Magnetoresistive Sensor
Product Description Of IIS2MDCTR
The IIS2MDCTR is a high-accuracy, ultra-low-power 3-axis digital magnetic sensor.The IIS2MDCTR has a magnetic field dynamic range up to ±50 gauss.The IIS2MDCTR includes an I2C serial bus interface that supports standard, fast mode, fast mode plus, and high-speed (100 kHz, 400 kHz,1 MHz, and 3.4 MHz) and an SPI serial standard interface.The device can be configured to generate an interrupt signal for magnetic field detection.The IIS2MDCTR is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
Specification Of IIS2MDCTR
Product Status |
Active |
Technology |
Magnetoresistive |
Axis |
X, Y, Z |
Output Type |
I²C, SPI |
Voltage - Supply |
1.71V ~ 3.6V |
Resolution |
16 b |
Operating Temperature |
-40°C ~ 85°C |
Features |
Temperature Compensated |
Supplier Device Package |
12-LGA (2x2) |
Mounting Type |
Surface Mount |
Package / Case |
12-WFLGA |
Features Of IIS2MDCTR
3 magnetic field channels
Up to ±50 gauss magnetic dynamic range
16-bit data output
SPI/I2C serial interfaces
Analog supply voltage 1.71 V to 3.6 V
Selectable power mode/resolution
Single measurement mode up to 150 Hz
Support for hard-iron compensation
Programmable interrupt generator
Embedded self-test
Embedded temperature sensor
ECOPACK®, RoHS and “Green” compliant
Applications Of IIS2MDCTR
Anti-tampering in smart meters
Positional and distance sensors
Compasses for Inertial Measurement Unit(IMU)
Presence detection, magnetic switches
Variable magnetic field monitoring
Pin description Of IIS2MDCTR
