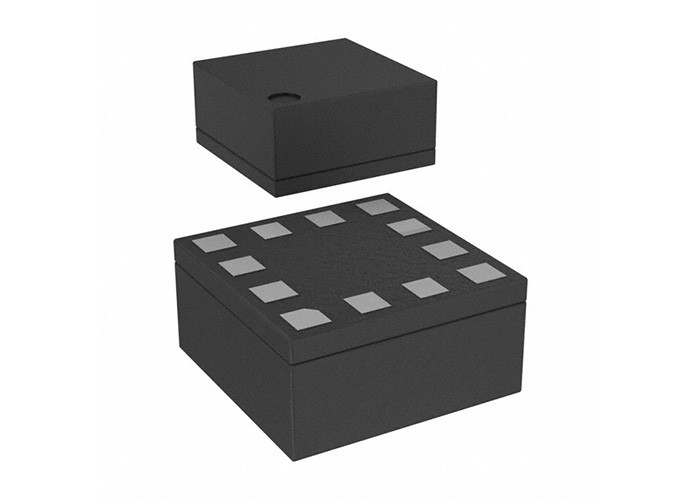

Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor

Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor
Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor

Large Image :  Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: ISM303DACTR
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 12-LGA
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor

Description
Part Number: ISM303DACTR Sensor Type: Accelerometer And Magnetometer
Output Type: I²C, SPI Product Status: Active
Operating Temperature: -40°C ~ 85°C Package: 12-LGA

Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor



Product Description Of ISM303DACTR

The ISM303DACTR is a high-performance, lowpower system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor.
The ISM303DACTR has user-selectable linear acceleration full scales of ±2g/±4g/±8g/16 g and is capable of measuring accelerations with output data rates from 1 Hz to 6400 Hz. The device has a magnetic field dynamic range of up to ±50 gauss with output data rates from10 Hz to 150 Hz.The ISM303DACTR includes an I2C serial bus interface that supports standard, fast mode,fast mode plus, and high-speed (100 kHz,400 kHz, 1 MHz, and 3.4 MHz) and an SPI serial standard interface.
The ISM303DACTR has an integrated 256-level firstin, first-out (FIFO) buffer for the accelerometer data which can be used to limit the intervention of the host processor.
The ISM303DACTR is available in a plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.



Specification Of ISM303DACTR

3-axis

X, Y, Z

2 g, 4 g, 8 g, 16 g

0.061 mg/digit, 0.122 mg/digit, 0.244 mg/digit, 0.488 mg/digit

Digital

I2C, SPI

16 bit

1.98 V

1.71 V

1.18 A

- 40 C

+ 85 C


Features Of ISM303DACTR

  • 3 magnetic field channels and 3 acceleration channels
  • Up to ±50 gauss magnetic dynamic range
  • ±2/±4/±8/16 g selectable acceleration full scales
  • Dynamic switching between high-resolution,high-frequency and low-power modes
  • 16-bit data output
  • SPI / I2C serial interfaces
  • Analog supply voltage 1.71 V to 1.98 V
  • Programmable interrupt generators for freefall, motion and magnetic field detection
  • Embedded self-test both for the accelerometer and magnetometer
  • Embedded 256-level FIFO
  • Embedded temperature sensor
  • ECOPACK®, RoHS and “Green” compliant



Applications Of ISM303DACTR

Dual mode anti-tampering in smart meters
Antenna pointing
Motion tracking
Robotics and appliances
Positioning and navigation systems
Positional and distance sensor



Pin description Of ISM303DACTR

Integrated Circuit Chip ISM303DACTR Multifunction Accelerometer and Magnetometer Sensor 0
