8MB Automobile Chips SPC5777CDK3MMO4 High Performance Multi-Core MCU BGA516 Package

8MB Automobile Chips SPC5777CDK3MMO4 High Performance Multi-Core MCU BGA516 Package

Description Of SPC5777CDK3MMO4

SPC5777CDK3MMO4 high performance multi-core MCUs for automotive and industrial engine management.
SPC5777CDK3MMO4 This device offers a high performance multi-core architecture with an industry standard timing system based on eTPU. Flash memory for code expansion, security modules and packaging options are available, as well as the highest level of functional safety (ASIL-D) support.

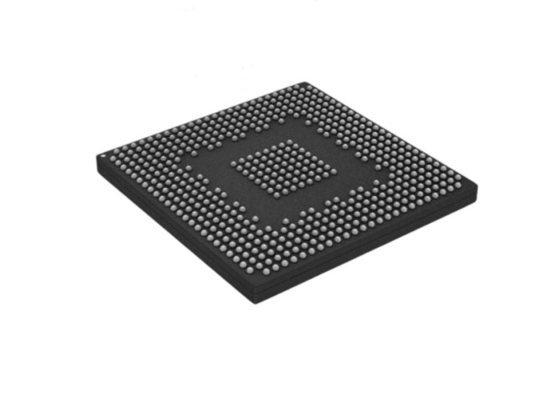

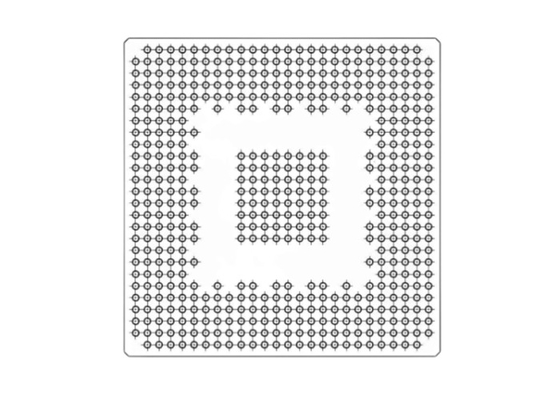

SPC5777CDK3MMO4 is available in a lead-free 516 solder ball molded array process ball grid array (MAPBGA) package.

Specification Of SPC5777CDK3MMO4

Features Of SPC5777CDK3MMO4

• Three dual issue, 32-bit CPU core complexes (e200z7), two of which run in lockstep
• On the two computational cores: 16 KB I-Cache and 16 KB D-Cache
• Hardware cache coherency between cores
• 16 hardware semaphores
• 3-channel CRC module
• 8 MB on-chip flash memory
• Supports read during program and erase operations, and multiple blocks allowing EEPROM emulation
• 512 KB on-chip general-purpose SRAM including 64 KB standby RAM
• Two multichannel direct memory access controllers (eDMA)
• 64 channels per eDMA
• Dual core Interrupt Controller (INTC)
• External Bus Interface (EBI) for calibration and application use
• System Integration Unit (SIU)
• Error Injection Module (EIM) and Error Reporting Module (ERM)
• Four protected port output (PPO) pins
• Boot Assist Module (BAM) supports serial bootload via CAN or SCI
• Three second-generation Enhanced Time Processor Units (eTPUs)
• 32 channels per eTPU
• Total of 36 KB code RAM
• Total of 9 KB parameter RAM

Applications Of SPC5777CDK3MMO4

• Engine control units (ECUs)
• Electric DC motor control
• Ethernet connectivity
• Aerospace engines

Circuit Schematic Of SPC5777CDK3MMO4
