STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP

STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP
STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP

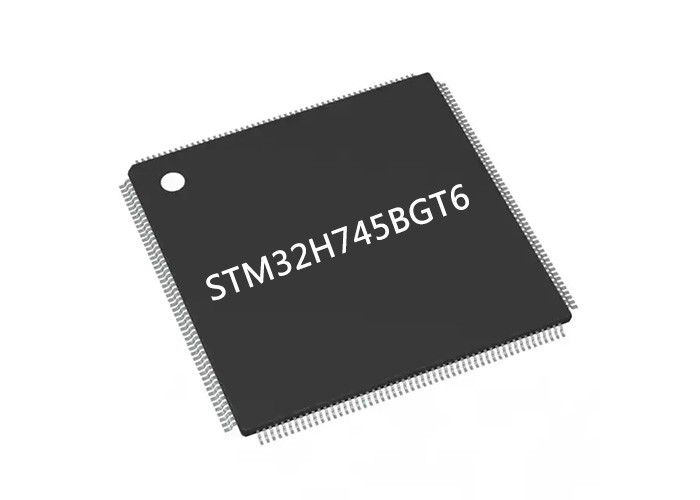

Large Image :  STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP

Product Details:
Place of Origin: CN
Brand Name: Original Factory
Certification: Lead free / RoHS Compliant
Model Number: STM32H745BGT6
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Contact for Sample
Packaging Details: 208-LQFP
Delivery Time: 5-8 work days
Payment Terms: T/T, L/C, Western Union

STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP

Description
Part Number: STM32H745BGT6 Operating Temperature: -40°C ~ 85°C (TA)
Program Memory Size: 1 MB Data Bus Width: 32 Bit
Number Of I/O: 148 RAM Size: 1M X 8

STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP



Product Description Of STM32H745BGT6

STM32H745BGT6 is based on the high-performance Arm® Cortex®-M7 and Cortex®-M4 32-bit RISC cores. The Cortex®-M7 core operates at up to 480 MHz and the Cortex®-M4 core at up to 240 MHz.Offer three ADCs, two DACs, two ultra-low power comparators, a low-power RTC, a high-resolution timer, 12 general-purpose 16-bit timers, two PWM timers for motor control, five low-power timers, a true random number generator.


Specification Of STM32H745BGT6

Product Status

Active

Core Processor

ARM® Cortex®-M4/M7

Connectivity

CANbus, EBI/EMI, Ethernet, I²C, IrDA, LINbus, MDIO, MMC/SD/SDIO, QSPI, SAI, SPDIF, SPI, SWPMI, UART/USART, USB OTG

Peripherals

Brown-out Detect/Reset, DMA, I²S, LCD, POR, PWM, WDT

Voltage - Supply (Vcc/Vdd)

1.62V ~ 3.6V

Data Converters

A/D 32x16b; D/A 2x12b

Operating Temperature

-40°C ~ 85°C (TA)

Mounting Type

Surface Mount

Package / Case

208-LQFP

Supplier Device Package

208-LQFP (28x28)



Features Of STM32H745BGT6

  • 32-bit Arm® Cortex®-M7 core with double-precision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
  • 32-bit Arm® 32-bit Cortex®-M4 core with FPU, Adaptive real-time accelerator (ART Accelerator™) for internal Flash memory and external memories, frequency up to 240 MHz, MPU, 300 DMIPS/1.25 DMIPS /MHz (Dhrystone 2.1), and DSP instructions
  • LCD-TFT controller up to XGA resolution
  • Chrom-ART graphical hardware Accelerator™ (DMA2D) to reduce CPU load
  • Hardware JPEG Codec



Pin descriptions Of STM32H745BGT6

STM32H745BGT6 High performance Dual 32bit ARM Flash Microcontrollers IC 208-LQFP 0
